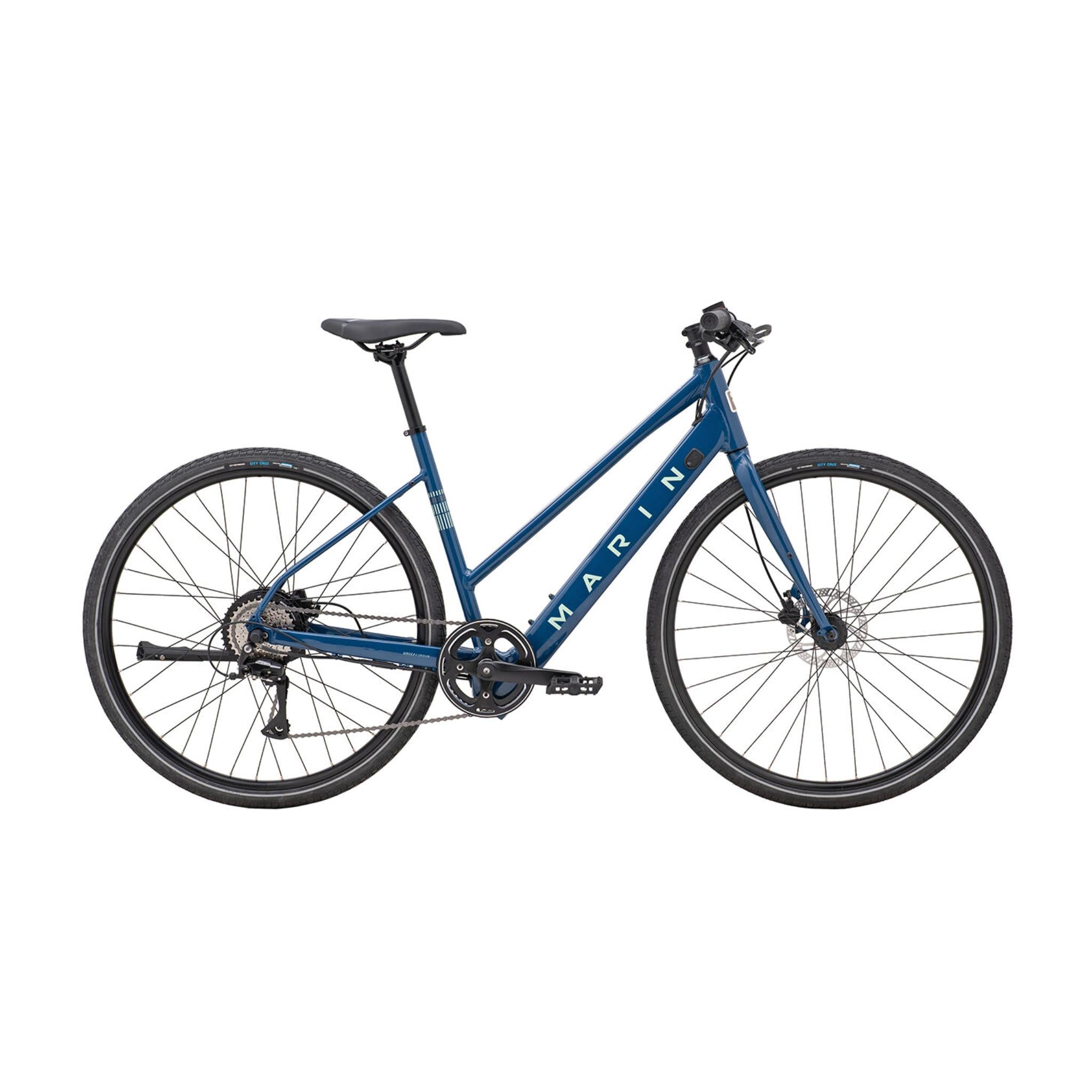

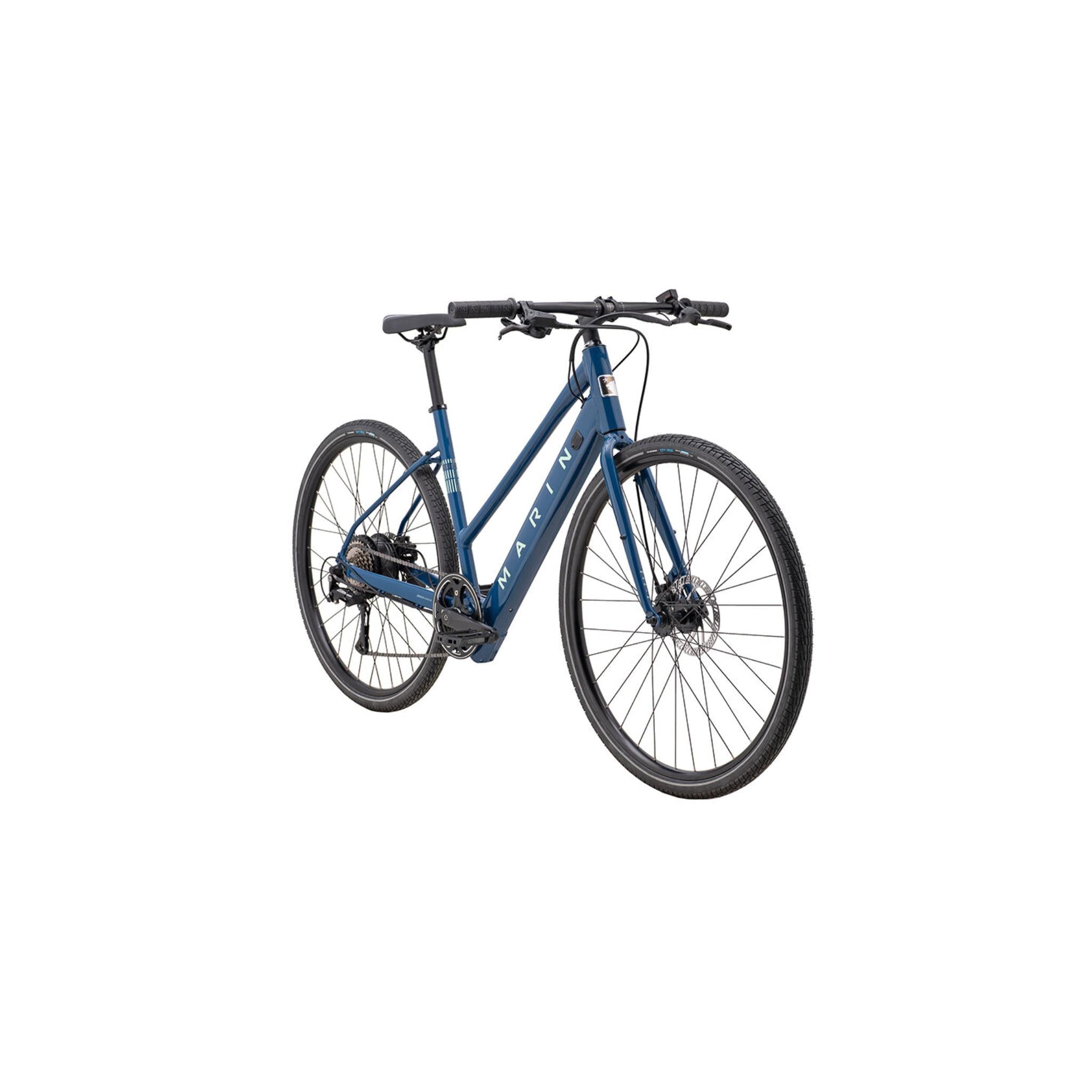

The ideal multi-purpose electric bicycle, perfect for commuting and leisure riding.
The Fairfax E ST has a comfortable, step-through design frame, making for pleasant access and riding position.
The heart of the Fairfax E is the Bafang rear hub motor. This reliable motor gives 40nm of pedal assist powered by a 340wh battery, good for 19-62 miles riding. The battery is neatly integrated into the Fairfax E’s downtube, protected and giving the bike a sleeker look. The charging port is easily accessible, under a weather-resistant cover. Shimano’s stalwart Altus 8-speed drivetrain smoothly and reliably glides between the gearing.
SIZING –
- XS: 4’11” to 5’1″
- S: 5’1″ to 5’5″
- M: 5’5″ to 5’9″
- L: 5’9″ to 6’1″
SPECIFICATION –
Frame – Series 2 Fitness, E-Bike Specific, 6061 Aluminium, 700c Wheels, Disc Specific, Fitness Geometry, Step-Thru Top Tube, Kickstand Mount, Fender and Rack Mounts
Fork – 6061 Aluminium, Straight-Blade, Disc Mount, Fender and Rack Eyelets
Rim – Marin Aluminium Double Wall, Disc Specific
Hub Rear – Bafang 250 Watt Hub Motor, 40Nm Torque, 36H, North America Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world
Hub Front – Forged Aluminium Alloy, 32H
Spokes – 14g Stainless Steel
Tires – Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead
Derailleur Rear – Shimano Acera, 8-Speed, Wide Range
Shift Lever – Shimano Altus 8-Speed RapidFire
Crankset – Alloy Crank, Steel 42T Chainring, Ring Guard
Bottom Bracket – Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
Chain – KMC X8
Cassette – Shimano HG-400, 8-Speed, 11-40T
Brakes Front – Tektro HDM-275 Hydraulic Disc, 160mm Rotor
Brakes Rear – Tektro HDM-275 Hydraulic Disc, 160mm Rotor
Brake Levers – Tektro Hydraulic
Handlebar – Marin Alloy Flat
Stem – Marin Alloy
Grips – Marin County
Headset – FSA, Orbit CE No.8B
Seatpost – Marin Alloy, 27.2mm
Saddle – Marin Fitness
Pedals – Marin Oso OEM Nylon Platform
Battery – Bafang 340Wh, 36V, In-tube
Controller – Bafang Handlebar Mount LED Switch & Display
Kickstand – Alloy Rear-Mount
Range, Charging Time – 19-62 Miles/30-100km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours
