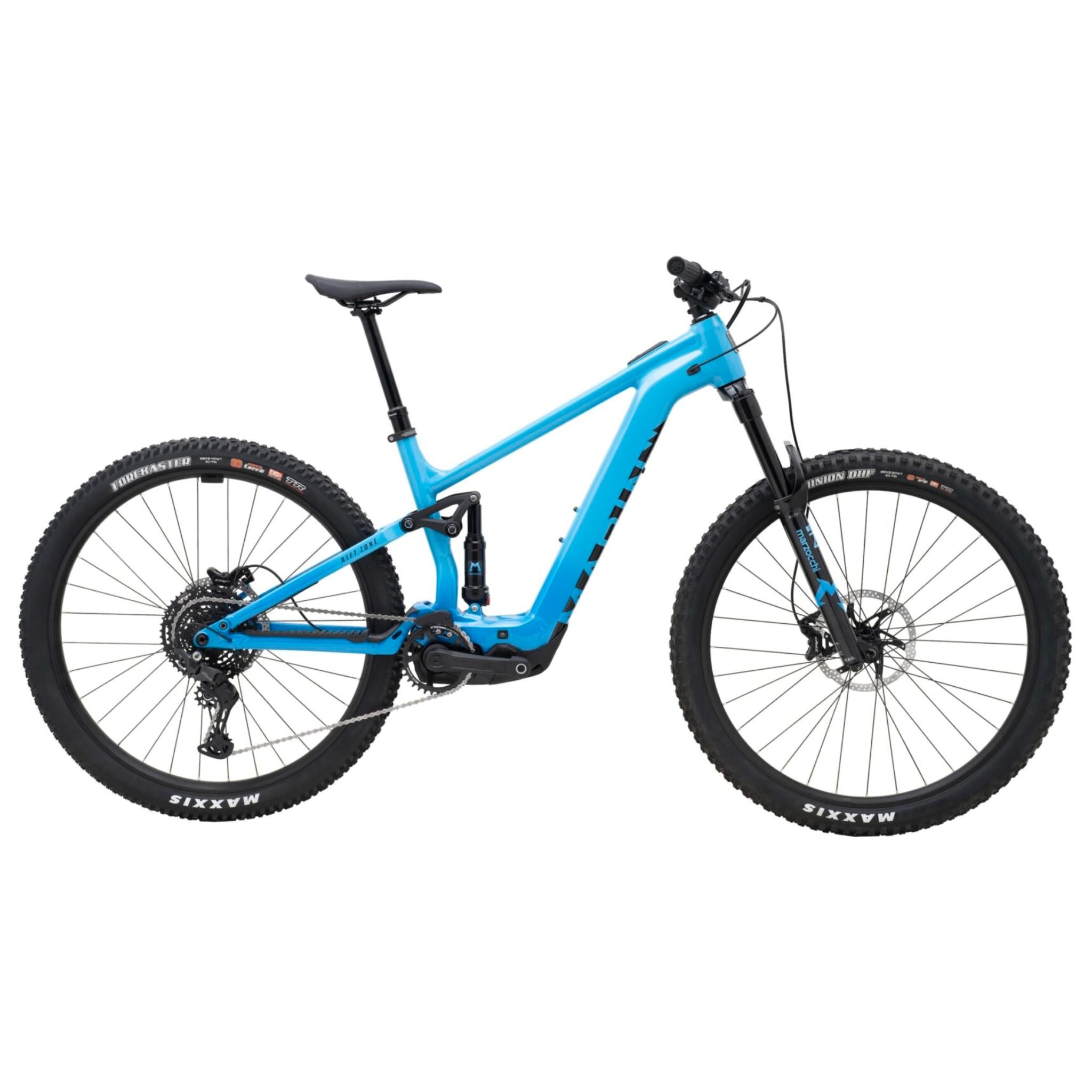

The Rift Zone EL (Electric Light) offers Marin’s UK rider favourite electric mountain bike model in a lighter weight variant. With performance to match the full-powered Rift Zone E range, the EL removes some bulk for those that do not need the full range output of the more traditional E-MTB’s.
The beating heart of the Rift Zone EL is Bosch’s new Performance Line SX drive unit and compact 400wh internal battery. The smooth motor offers a powerful 55nm of torque, expected range is between 15-55 miles depending on terrain and level of power assistance used.
Key Features –
- Marin Lightweight Alloy E frame with MultiTrac suspension linkage
- 150mm Front, 140mm Rear travel
- Bosch Performance Line SX Motor, 600w, 55nm Torque
- 400wh Internal battery, removeable using common tools
- 6 hour charging time under optimal conditions
- Estimated range – 15-55 miles (power mode and terrain dependant)
- Marzocchi Bomber Z1 fork, Marzocchi Bomber Air Inline shock
- Shimano 10-speed gearing
The Rift Zone EL 1 is the entry model and presents a well thought out kit, balancing performance and value.
SIZING –
- S: 5’3 – 5’6
- M: 5’6 – 5’10
- L: 5’10 – 6’2
- XL: 6’2 – 6’4
Specifications::Rift Zone EL 1
-
Discipline: Trail/All-Mountain
-
Material: Aluminium
-
Front Travel: 150mm
-
Rear Travel: 140mm
-
Wheel Size: 29″
-
Warranty: 5 Years (frame)
Frame – All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension – Marzocchi Bomber Z1 150mm Travel, 29, 110×15 Kabolt Thru Axle, 44mm Offset
Rear Suspension – Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount
Rim – Marin Aluminium Double Wall, 29″ Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear – Shimano FHTC500, 148×12 Thru Axle, Microspline, 32H, Centerlock
Hub Front – Shimano HB-TC500, 110×10 Thru Axle, 32H, Centerlock
Spokes – 14g Black Stainless Steel
Tires – Front: Maxxis Minion DHF, 29×2.4″ MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29×2.4″, Tubeless Ready MAXX TERRA EXO+
Derailleur Rear – Shimano CUES RD-U6000 GS, 10-Speed
Shift Lever – Shimano CUES SL-U6000-10R, 10-Speed
Crankset – e*thirteen e*spec Plus, 160mm Length, 34T
Motor – Bosch Performance Line SX, 600W, 55Nm torque
Chain – Shimano LG500
Cassette – Shimano CS-LG300-10, 11-48T
Brakes Front – TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
Brakes Rear – TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
Brake Levers – TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible
Handlebar – Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem – Marin 3D Forged Alloy, 35mm
Grips – Marin Grizzly Lock On
Headset – FSA Custom, Adjustable HTA Design
Seatpost – TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm
Saddle – Marin Speed Concept
Pedals – Marin MTB Plastic
Battery – Bosch CompactTube 400Wh Internal
Display – Bosch BRC3100 Systems Controller
Switch – Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Extras – e*thirteen e*Spec Chainguide
Extras – Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger
Range, Charging Time – 15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions)
