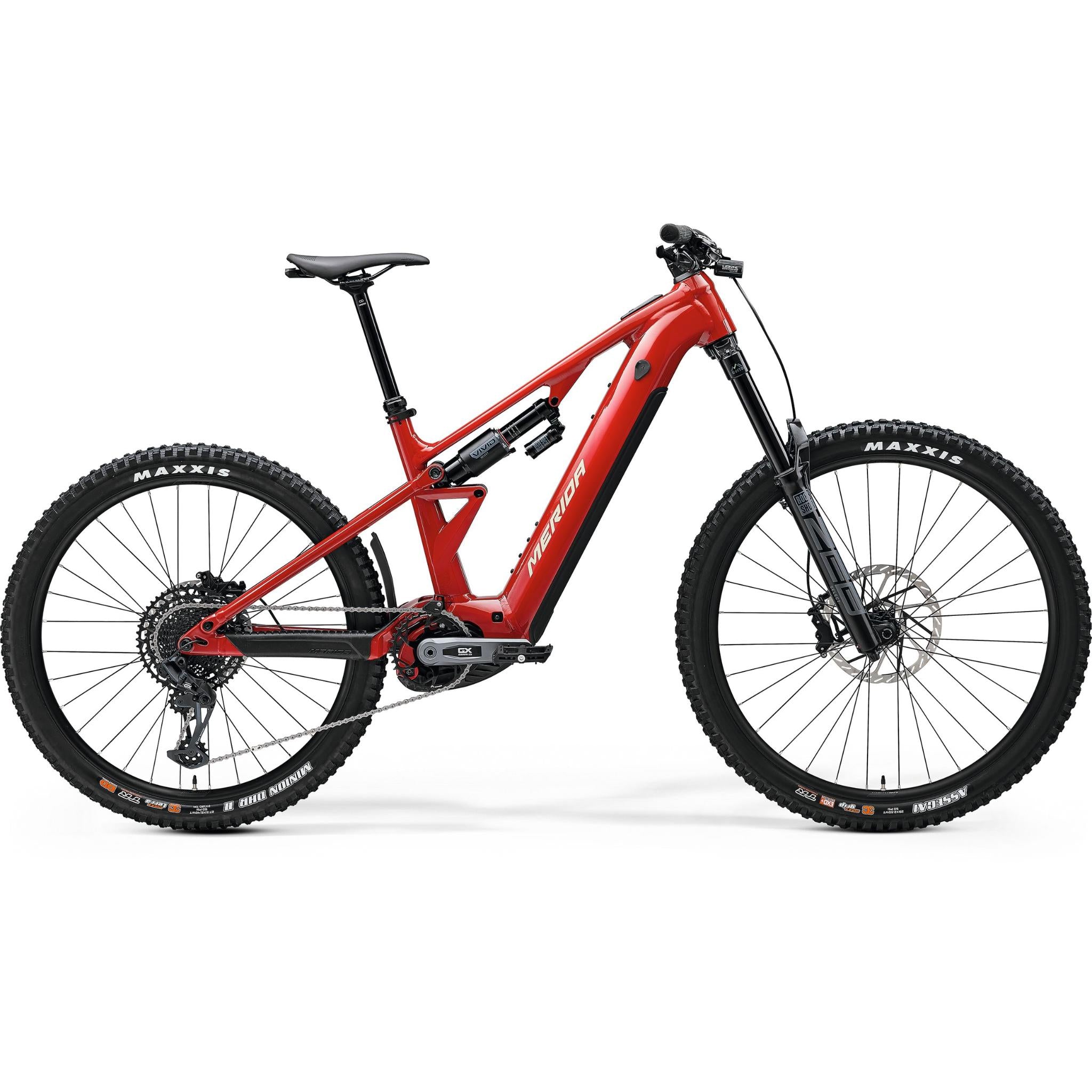

Name: Merida eOne-Eighty 700 2025
SKU: Q850
Availability: InStock

Merida’s electric mountain bike of choice for the big hitters, the big travel eOne-Eighty made for big lines and feature packed bike parks.

‘Merida’s new eOne-Eighty is the most capable long-travel e-bike I’ve ever tested’ – MBR Magazine

‘The eONE-EIGHTY is a perfect match for both freeriders and beginners alike!’ – ebike-mtb.com

At the heart of the eOne-Eighty is the Bosch Performance Line CX drive unit, offering 85nm of smoothly delivered torque. This rider favourite motor runs silent and is proudly one of the most reliable e-mtb units on the market.

Features:

Bosch Performance Line CX 85Nm motor
Bosch Power Tube 800Wh battery
Rock Shox Zeb Select 180mm air fork
Rock Shox Vivid Select shock
SRAM GX Eagle 12 speed transmission
SRAM DB8 4 piston hydraulic disc brakes

Merida Sizing –

X-Short: 145cm – 165cm
Short: 155cm – 175cm
Mid: 165cm – 185cm
Long: 175cm – 195cm
X-Long: 185cm+

Merida’s latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.

For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.

Specifications::eOne-Eighty 700

Discipline: Enduro/All Mountain
Material: Aluminium
Front Travel: 180mm
Rear Travel: 160mm
Wheel Size: MX
Warranty: 5 year (frame)

FRAME – eONE-EIGHTY LITE I ; carbon; 160mm travel; 29” x 2,6” max. tyre size; 148x12mm bolt through axle; intube;

MOTOR – Bosch Performance Line CX

BATTERY – Bosch PowerTube 800; 800Wh

DISPLAY – Bosch Purion 400

MODE SWITCH – Bosch Mini Remote

SHOCK – Rock Shox Vivid Select

FORK – Rockshox Zeb Select eMTB; Air; 180mm travel; Tapered; 44mm fork offset; 29×2.6″ max. tyre size

GEARS – 12

SHIFTERS – SRAM Eagle 90

REAR DERAILLEUR – SRAM Eagle 90 Transmission

CHAIN – SRAM Eagle 70; Flattop

CHAINSET – SRAM Eagle Transmission E-MTB for BOSCH; 34 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes

CASSETTE – SRAM CS XS 1270 ; 10-52 teeth; 12 speed

BRAKE LEVER – SRAM DB8

FRONT BRAKE – SRAM DB8 Stealth 4 piston hydraulic disc caliper with SRAM HS2, 220mm rotor

REAR BRAKE – SRAM DB8 Stealth 4 piston hydraulic disc caliper with SRAM HS2, 200mm rotor

GRIP – Merida Expert EC

HANDLEBAR – Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise

STEM – Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes

HEADSET – Acros ICR Merida external neck with Blocklock

PEDALS – VP VP-532

SADDLE – Merida Comp SL; 28% recycled material; V-mount; incl. Merida minitool

SEATPOST – Merida TEAM TR II; 34.9mm diameter; 0 mm lay back; all sizes 30-230 SPT

RIMS – Merida Expert TR II; 110×15 WHF; 148×12 WHR; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29″; rear 27.5″

SPOKES – Black stainless

FRONT HUB – Shimano TC500; 15x100mm; 32 spoke; Centerlock

REAR HUB – Shimano TC500; 12x148mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key

FRONT TYRE – Maxxis Assegai; 29×2.5″; kevlar bead; TR EXO+ 3C MaxxGrip

REAR TYRE – Maxxis Minion DHR II; 27.5×2.4″; kevlar bead; 3C DD TR MaxxTerra

FRONT LIGHT – Lezyne Fusion StVZO E500

REAR LIGHT – USB REAR Light CG-214RG

Additional information

Colour	Heritage Red, Heritage Red, Heritage Red, Heritage Red, Heritage Red
Size	XShort, Short, Mid, Long, XLong
