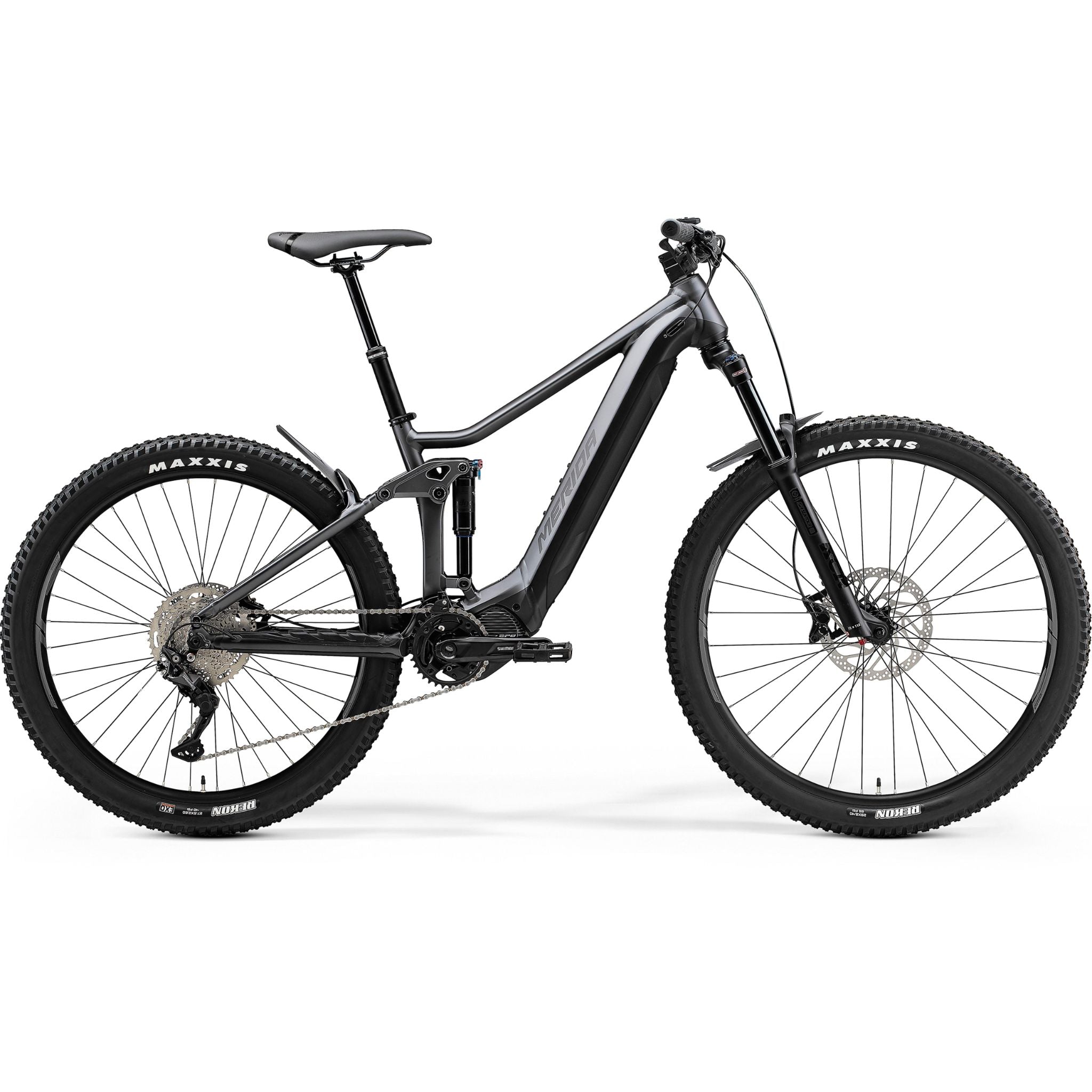

The eOne-Forty shares exactly the same frame and design features as the big-travel, award winning eOne-Sixty but has lower travel numbers and different ride characteristics.
The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that’s perfect for all day riding.
The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, a 29er front wheel with a 2.5″ tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6″ tyre. The perfect combination of precision, playfulness and traction.
All eOne-Forty models use the powerful Shimano EP600 85NM motor and bigger 630Wh battery (with the exception of frame size – S which uses 504Wh).
Shimano’s e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising.
Specifications::eOne-Forty 400
-
Discipline: Trail/All-Mountain
-
Material: Aluminium
-
Front Travel: 140mm
-
Rear Travel: 133mm
-
Wheel Size: 29″
-
Warranty: Lifetime (frame)
FRAME – Lite III – Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5″ x 2.8″.
MOTOR – Shimano Steps EP6; 85Nm
BATTERY – Shimano EN806; 630Wh internal battery
BATTERY CAPACITY – 630Wh
EBIKE DISPLAY – Shimano SC-EN500
CHARGER – Shimano EC-E6002; 2A Charging current
POWER BUTTON – Merida Power Cap button
MODE SWITCH – Shimano SC-EN500
SHOCK – Suntour RS-Edge-TR-LO-R8-M6; lockout
FORK – Suntour XCR34 LOR DS; Air; Boost; 140mm travel; Tapered; 51mm fork offset; Max. tyre size: 29″ x 2.4″
GEARS – 10
SHIFTERS – Shimano Deore M4100 with Shimano SL -MT500-IL lever
REAR DERAILLEUR – Shimano Deore RDM5120 10
BOTTOM BRACKET – Part of Shimano Steps motor
CHAIN – KMC e10s
CHAINSET – Shimano CRE70-B; 34 tooth chainring with Shimano FC-EM600; 165mm length crank
CASSETTE – Shimano M4100; 11-46 teeth; 10 speed
BRAKE LEVER – Shimano M4100
FRONT BRAKE – Shimano M4204; 4 piston hydraulic disc brake caliper with Shimano RT30; 203 mm rotor
REAR BRAKE – Shimano M4100 2 piston hydraulic disc brake caliper with Shimano RTEM300 180 mm rotor
GRIP – Merida Expert EC
HANDLEBAR – Merida Expert eTR; 780mm wide; 20mm rise
STEM – Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise – stem length: 50mm all sizes; GoPro & Supernova mount
HEAD SET – Merida-8152
PEDAL – VP Components – VPE-537
SADDLE – Merida Comp SL with V-mount
SEAT POST – Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL)
WHEEL SIZE – 29″ / 27.5″
RIMS – Merida Comp TR; 29mm inner rim width; Aluminium
SPOKES – Black stainless
FRONT HUB – Shimano MT400-B; 110x15mm; 32 spokes; Center lock
REAR HUB – Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key
FRONT TYRE – Maxxis Rekon; 29″ x 2.4″; wire bead; dual
REAR TYRE – Maxxis Rekon; 27.5″ x 2.6″; wire bead; EXO
FRONT LIGHT – CG-119PG front light
REAR LIGHT – CG-404RG rear light
OTHER – Shimano Satellite charging port; EW-CP100
