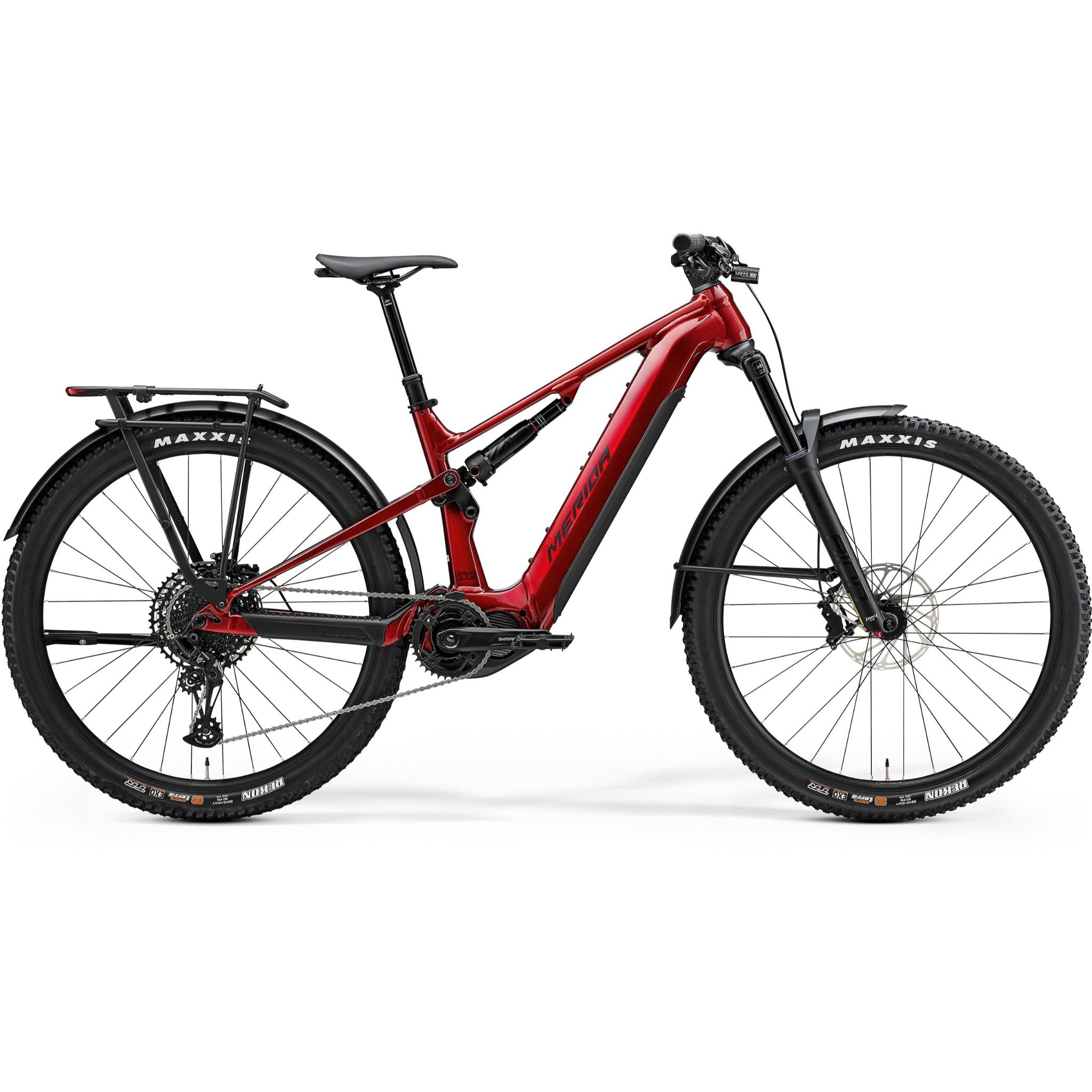

The new eOne-Forty has a big range in every sense. It’s highly versatile, from the trail to the commute, and the impressive 750 Wh battery can be boosted with a 360 Wh range extender that’s available separately.
The suspension platform and geometry has been influenced by previous generation ebikes and Merida’s award-winning trail and enduro range so it has peerless off-road performance and handling that’s confident and capable. The suspension offers 143 mm of rear wheel travel and 150 mm up front.
Merida’s simplified AGILOMETER sizing system allows you to choose the handling you want thanks to low standover heights. Choose a longer size for off road stability or go shorter to increase agility.
Features:
- Durable LITE aluminium frame with 143 mm rear wheel travel
- Shimano EP801 85Nm motor with removable 750 Wh battery
- Suntour Aion fork with 150 mm travel and RockShox Super Deluxe Select rear shock
- SRAM Eagle 12-speed, wide-range drivetrain
- Merida tubeless-ready wheelset
- Full 29″ with option to run mixed ‘mullet’ wheel sizes
Specifications::eOne-Forty 675 EQ
Specifications
FRAME – Lite IV – Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5″ x 2.8″
MOTOR – Shimano EP801; 85Nm
BATTERY – Trendpower Internal Battery Gen 2; 750Wh
DISPLAY – Shimano SC-EN600
CHARGER – Trendpower EU Smart Charger; 4A
MODE SWITCH – Shimano SW-EN600-L
SHOCK – Rock Shox Super Deluxe Select
FORK – SR Suntour SF25-AION 36X-Boost axle standard
SHIFTERS – Limotech RM10 (For SRAM MMX) dropper lever and SRAM Eagle 70 Transmission Shifter
REAR DERAILLEUR – SRAM Eagle 70
BOTTOM BRACKET – Part of Shimano Steps motor
CHAIN – SRAM Eagle 70 – Flattop
CHAINSET – SRAM XX Eagle Transmission E-MTB for Steps; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide
CASSETTE – SRAM PG-1270 Eagle; 10-50 teeth; 12 Speed
FRONT BRAKE – SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
REAR BRAKE – SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
HANDLEBAR – Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise
STEM – Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes
HEADSET – Acros ICR Merida external neck with Blocklock
SADDLE – Merida Comp SL; 28% recycled material; V-mount; including Merida minitool
SEATPOST – Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel – S: 150mm seat post travel – M/L: 200mm seat post travel – XL: 230mm seat post travel
RIMS– Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); 29″
FRONT HUB – Novatec SL-ELITE D041SB-B15; 110x15mm; 32 spoke; 6 bolt
REAR HUB – Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12mm; 32 spoke; 6 bolt with Merida Expert TR; including removeable lever, 6/4mm allen key
FRONT TYRE – Maxxis Rekon; 29″ x 2.4″; Kevlar bead, folding; 3C EXO MaxxTerra
REAR TYRE – Maxxis Rekon; 29″ x 2.4″; Kevlar bead, folding; TR 3C EXO MaxxTerra
FRONT LIGHT – Lezyne E-Bike Power STVZO E115
REAR LIGHT – Spanninga Commuter Glow XE integrated in Merida MIK HD carrier
OTHER – Massload MA-013 carrier rack, Atranvelo ED-100-PC kickstand and full mudguards
