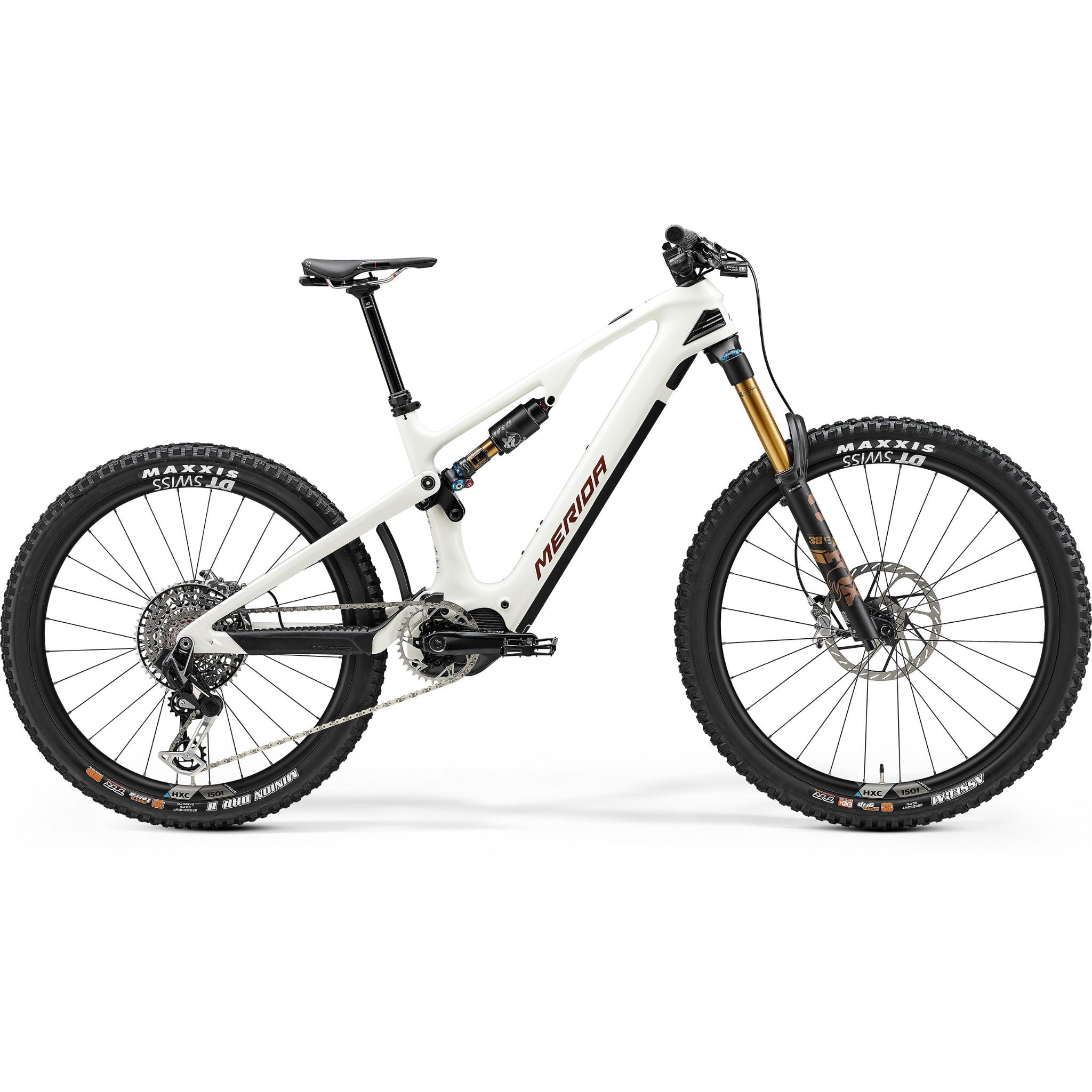

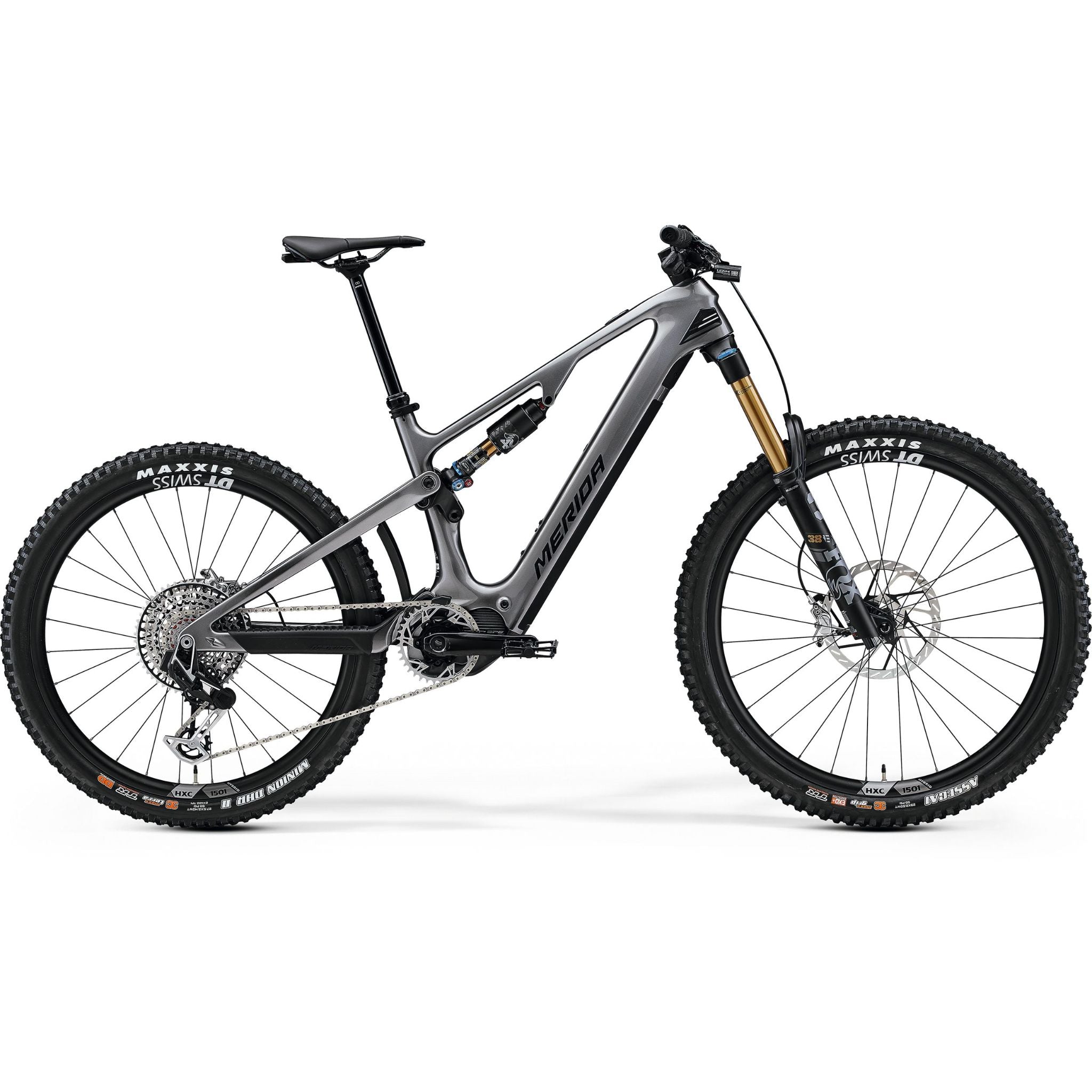

The new eOne-Sixty CF pairs an enduro-ready lightweight full carbon chassis with a full-support motor and a 600 Wh battery.
A 360 Wh range extender is available separately so you don’t have to choose between precise, playful handling, decent range or support that’ll get you up the trickiest technical sections.
With 170 mm travel at the front and 174 mm at the rear, it’s perfectly at home on a race track or hitting the trails on repeat. The award winning FAST kinematic suspension and Agilometer sizing of our regular One-Sixty enduro complement our proven e-bike heritage.
Merida’s low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that’s been designed for the toughest enduro trails.
Thanks to Merida’s 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel – whichever suits you.
Features:
- Carbon front triangle
- Shimano Steps EP801 85Nm motor with Shimano 600Wh internal battery
- FOX Factory 38 fork and FOX Factory Float X2 rear shock
- SRAM XX Eagle 12 speed
- DT Swiss Spline HXC1501 30 boost wheelset
- SRAM Code Ultimate Stealth 4 piston hydraulic disc brakes
Specifications::eOne-Sixty 10K
FRAME – Carbon III – carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29″ x 2.6″
MOTOR – Shimano EP801; 85Nm
BATTERY – Trendpower TPS-C15-58SD; 600Wh integrated
DISPLAY – Shimano SC-EM800
CHARGER – Trendpower EU Smart Charger; 4A
MODE SWITCH – Shimano SW-EM800-L
SHOCK – FOX Factory Float X2; 2 Pos Lever
FORK – FOX 38 Factory eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29″ x 2.6″
SHIFTERS – Limotech RM10 (For SRAM MMX) dropper lever and SRAM AXS Pod Controller
REAR DERAILLEUR – SRAM XX Eagle Transmission AXS
BOTTOM BRACKET – Part of Shimano Steps motor
CHAIN – SRAM XX Eagle – Flattop
CHAINSET– SRAM XX Eagle Transmission E-MTB for Steps; 36 teeth with Shimano FC-EM900 crank; 165mm all sizes; with Merida chain guide
CASSETTE – SRAM XX Eagle Transmission; 10-52; 12 Speed
BRAKE LEVER – SRAM Code Ultimate Stealth
FRONT BRAKE – SRAM Code Ultimate Stealth 4 piston hydraulic disc brake caliper with SRAM HS2 220mm rotor
REAR BRAKE – SRAM Code Ultimate Stealth 4 piston hydraulic disc brake caliper with SRAM HS2 200mm rotor
HANDLEBAR – Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise
STEM – Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes
HEADSET – Acros ICR Merida integrated neck with Blocklock
SADDLE – Proxim Nembo Triox; V-mount adapter; including Merida minitool
SEATPOST – Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel
RIMS – Part of wheelset – DT Swiss HXC 1501; 30mm inner rim width; carbon; Tubeless ready (tubeless tape and valves included)
SPOKES – Part of wheelset
FRONT HUB – Part of wheelset – DT Swiss HXC 1501; 110x15mm; 6-Bolt
REAR HUB – Part of wheelset – DT Swiss HXC 1501; 148x12mm; 6-Bolt; SRAM XD with Merida Expert TR; including removeable lever, 6/4mm allen key
FRONT TYRE – Maxxis Assegai; 29″ x 2.5″; Kevlar bead, folding; TR EXO+ 3C MaxxGrip
REAR TYRE – Maxxis DHR II; 27.5″ x 2.4″; Kevlar bead, folding; 3C DD TR MaxxTerra
FRONT LIGHT – Lezyne E-BIKE POWER STVZO E115,
REAR LIGHT – Lezyne LED FEMTO USB REAR STVZO
