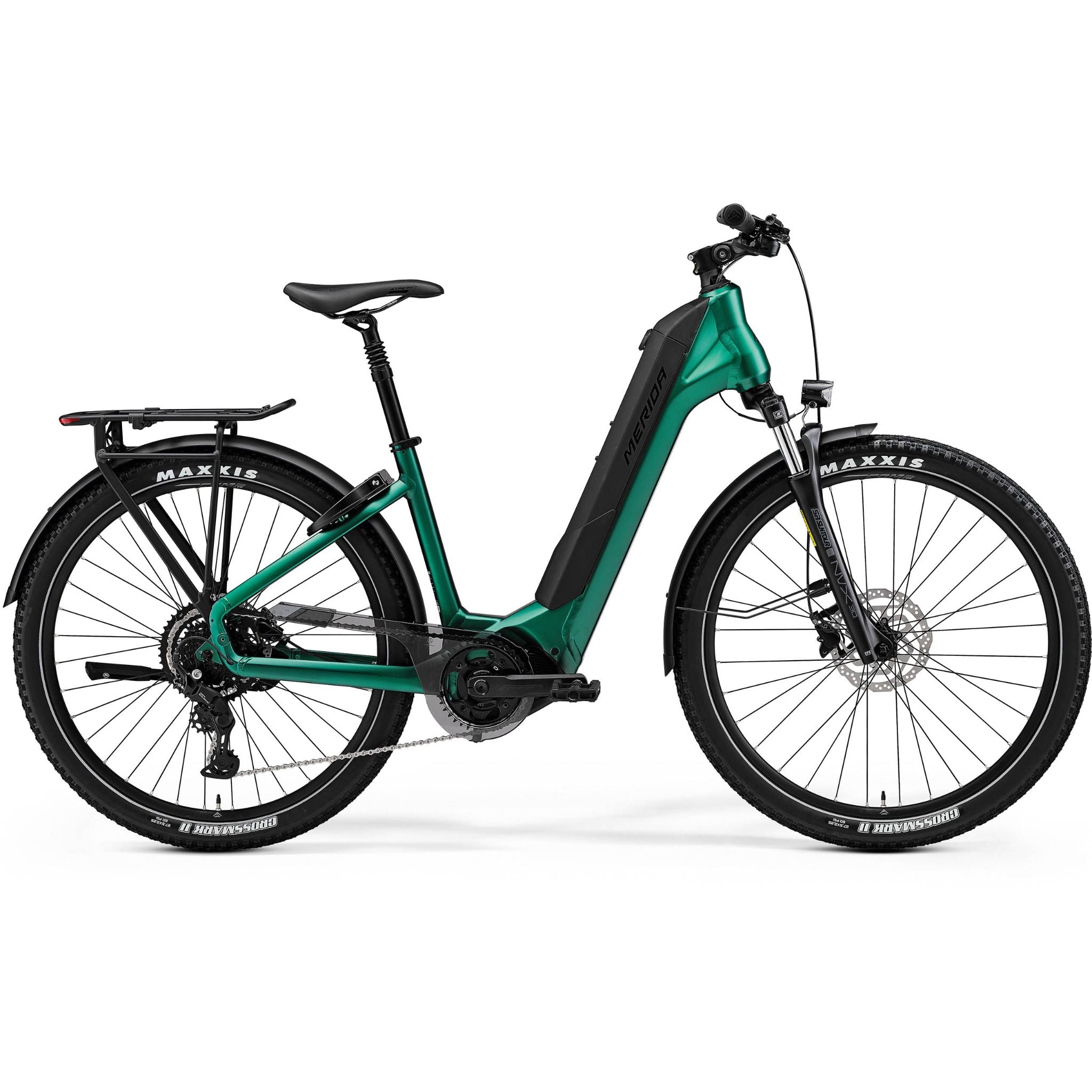

The eSpresso CC is a low step-through, fully equipped eBike for commuting and leisure riding. More rugged than an eSpresso City due to wider tyres and 650b wheels. Powered by a Shimano EP6 85Nm motor with powerful 504Wh battery
Whilst it’s happy in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it’s also capable of taking trips along forest trails and gravel tracks for fun.
All eSpresso CC models are equipped with a refined, powerful Shimano STEPS pedal-assist motor. Smooth, comfortable progress is assured by suspension forks and powerful hydraulic disc brakes allowing effortless, controlled braking.
- New, powerful Shimano EP6 drive unit
- Super low step-through ENERGY CRADLE frame design with internally mounted 504 Wh battery
- Smooth Shimano 9-speed drivetrain
- Suspension fork and seat post for comfort and control
- Agile 650b wheels with grippy high-volume tyres
- Fully equipped with guards, lights, lock, rack and kickstand
SPECIFICATION –
FRAME – CC Lite III Hydroformed 6066 triple butted aluminium. Tapered head tube. 135 x 9mm axle standard. Cables routed internally via Smart Entry to hold them neatly and silent. Max. tyre size 27.5″ x 2.25″
MOTOR – Shimano Steps EP6; 85Nm
BATTERY – Shimano EN805-L; 504Wh internal battery
BATTERY CAPACITY – 504Wh
EBIKE DISPLAY – Shimano SC-EN500
CHARGER – Shimano EC-E6002; 2A Charging current
POWER BUTTON – CAP-045A, Merida Power Button
FORK – Suntour NVX30 DS; Coil; 80mm travel; Max. tyre size 27.5″ x 2.4″
GEARS – 9
SHIFTERS – Shimano CUES U4000
REAR DERAILLEUR – Shimano CUES U4000
BOTTOM BRACKET – Part of Shimano Steps motor
CHAIN – Shimano LG500
CHAINSET – Samox NWP203; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard
CASSETTE – Shimano LG300; 11-46 teeth; 9 speed
BRAKE LEVER – Shimano MT200
FRONT BRAKE – Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
REAR BRAKE – Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor
GRIP – Merida Expert TK
HANDLEBAR – Merida Expert; aluminium; 660mm wide; 15mm rise
STEM – Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes
HEAD SET – Merida-8254
PEDAL – VP Components – VPE-891
SADDLE – Merida Expert TK II; V-mount
SEAT POST – JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel
WHEEL SIZE – 27.5″
RIMS – Merida Comp TK; 20mm inner rim width; aluminium
SPOKES – Black stainless
FRONT HUB – Shimano QC300; 100 x 9mm; 32 spokes; Centerlock
REAR HUB – Shimano QC300; 135 x 9mm; 36 spokes; Centerlock
FRONT TYRE – Maxxis Crossmark II; 27.5″ x 2.25″; wire bead with reflective strip
REAR TYRE – Maxxis Crossmark II; 27.5″ x 2.25″; wire bead with reflective strip
FRONT LIGHT – Hermans H-Black MR4 E, LED front light – 120 Lumens
REAR LIGHT – Spanninga Commuter Glow XE integrated rear light
OTHER – Complete with: Mudguards, kickstand, Abus frame lock and Merida MIK HD Carrier with Spring clip, elastic strap & Spanninga rear light.
