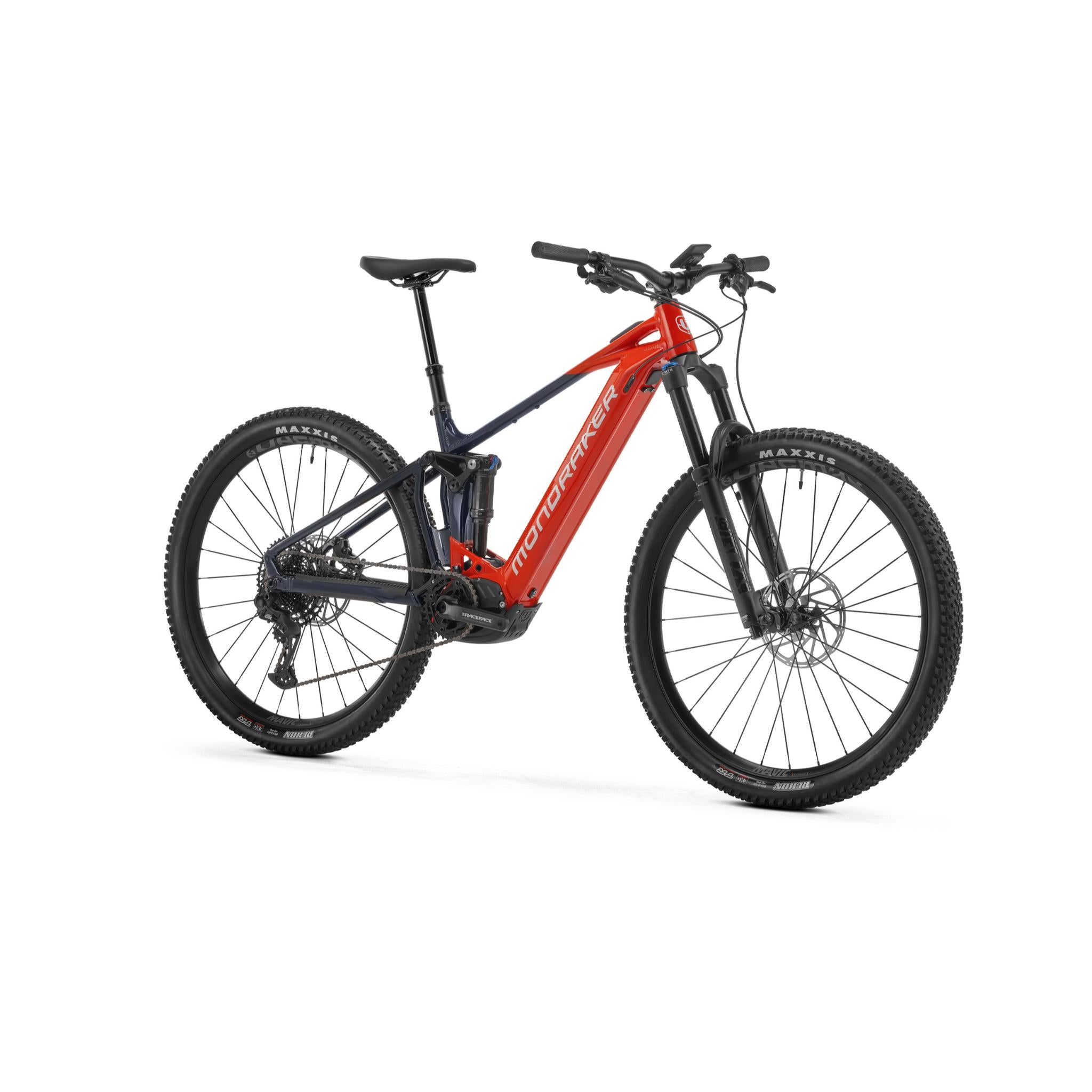

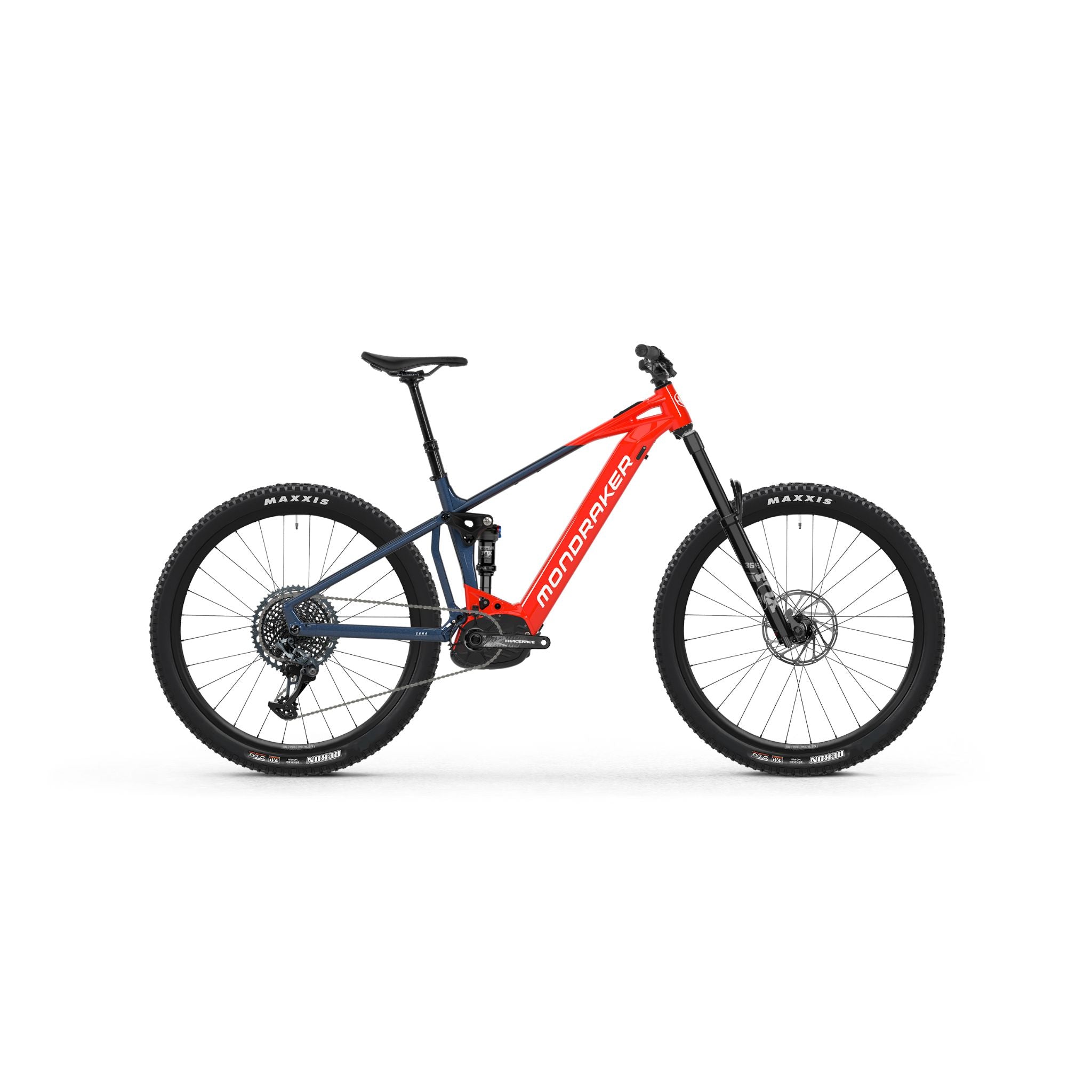

Mondraker Chaser R 2025

The Chaser R 2025 boasts carefully chosen parts and Mondraker’s signature frame layout to deliver top-notch electric mountain biking capabilities at an unbeatable cost. Building upon the Chaser’s base model, the R model comes equipped with a few upgraded components for enhanced performance.

Mondraker’s Chaser R 2025 is a top-of-the-line e-mtb offered at Biketart, making it the ideal selection for those seeking a high-performing, streamlined ride equipped with Mondraker’s cutting-edge technology.

Bosch Smart System –

The latest Bosch motor is a Performance Line CX GEN4 unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the Bosch 750Wh battery that allows you to enjoy a long days ride on a single charge.

SIZING –

• S: 160cm – 170cm
• M: 165cm – 180cm
• L: 175cm – 185cm
• XL: 185cm – 190cm+

Specifications::Chaser R

• Discipline: Trail/AM

• Material: Stealth Alloy

• Front Travel: 160mm

• Rear Travel: 150mm

• Wheel Size: 29″

• Warranty: Lifetime (frame)

Frame – Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Rear shock – Fox Float EVOL Performance, 205x65mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Fork – Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload
Headset – Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem – Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar – Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips – Onoff Twin, 1lock-on, 135mm
Seatpost – Onoff Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm
Saddle – MDK ebike black
Front brake – Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake – Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever – Sram DB8, tool-free reach adjust
Rims – Mavic E-Deemax 29, 30mm internal
Spokes – Mavic stainless steel
Front hub – Mavic, Boost 15x110mm
Rear hub – Mavic, Boost 12x148mm
Front tyre – (subject to change) Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+, 120TPI
Rear tyre – (subject to change) Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+, 120TPI
Crankset – Race Face Aeffect ebike, 165mm
Rings – Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain – Sram SX Eagle, 12s, Powerlock
Rear derailleur – Sram GX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers – Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette – Sram PG-1210, 11-50T, 12s
Derailleur hanger – Mondraker M068
Weight – 24.7 kg
Display – Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor – Bosch Performance Line CX Cruise (25Km/h) Smart System
Battery – Bosch Powertube 750Wh
