For long days riding over demanding terrains and big features, Mondraker present the Crafty electric mountain bike. All that Mondraker frame design expertise boosted with the rider favourite Bosch Smart power unit makes for an E-MTB ready for everything the Earth has to offer.

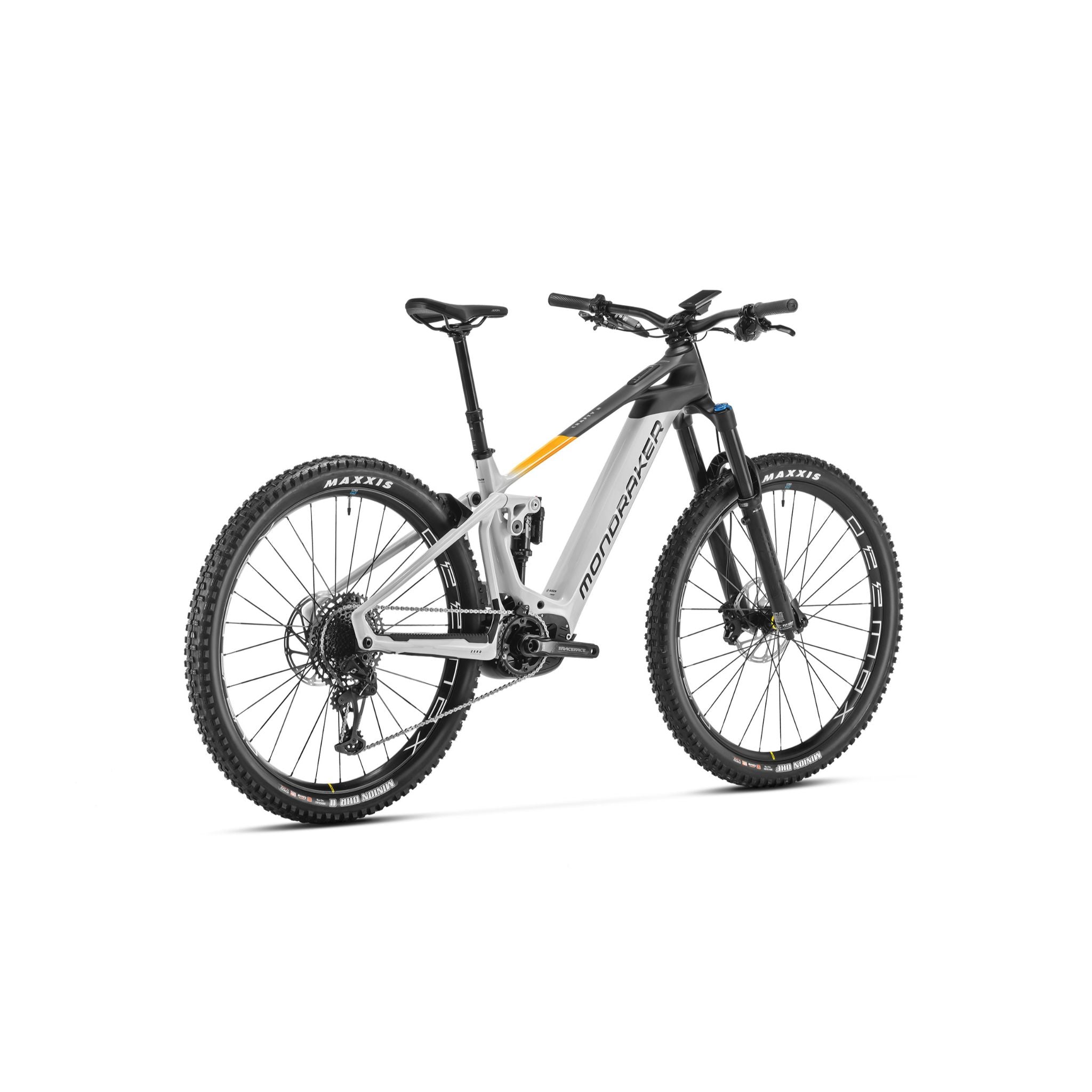

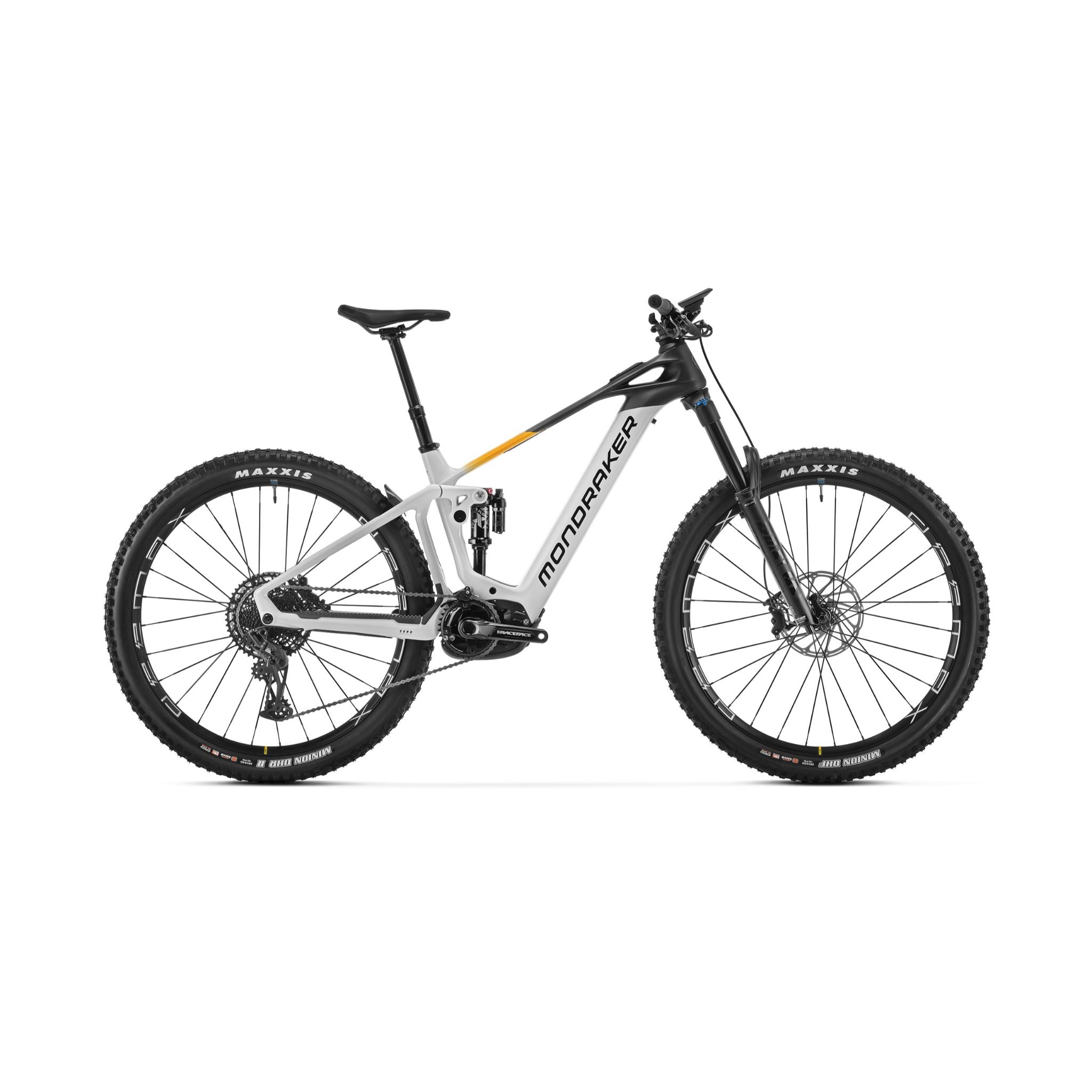

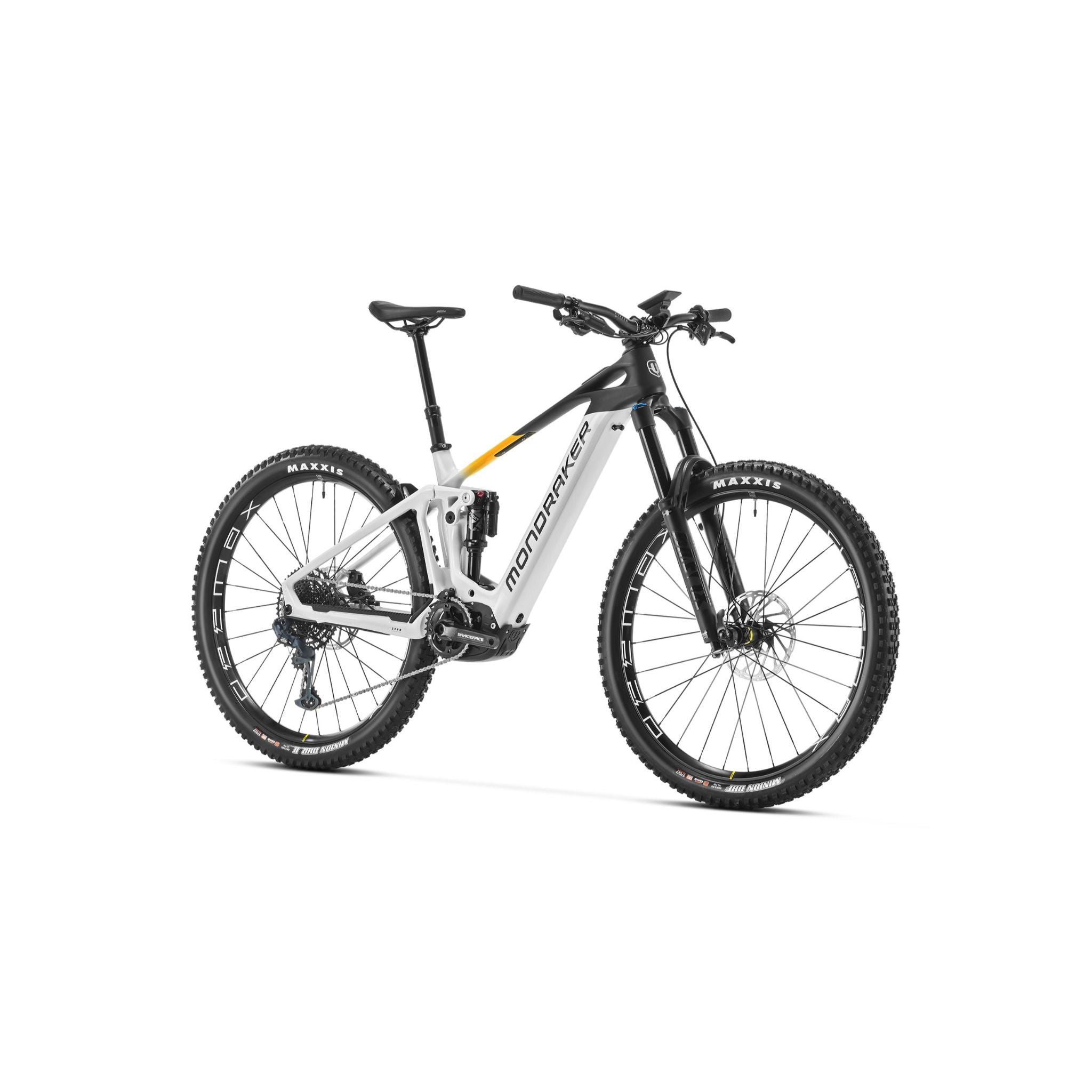

The Crafty Carbon R is a bestseller when it comes to E-MTB’s. Offering a truly balanced setup it feels agile, reactive and efficient whether you’re riding uphill or down. The frame’s Zero Suspension System is optimized for you to enjoy the trail whatever surprises it brings. You’ve got Bosch’s Smart System motor with its all-new wireless Mini Remote control and integrated System Controller to keep your cockpit clear. Then you’ve got a 750Wh battery to keep the trails flowing by without ever having to worry about range anxiety. It’s got everything you need ready to go.
Bosch Smart System –
The latest Bosch motor is a Performance Line CX GEN4 unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 750Wh battery that allows you to enjoy even more kilometers of trail on a single charge.
SIZING –
- S: 160cm – 170cm
- M: 165cm – 180cm
- L: 175cm – 185cm
- XL: 185cm – 190cm+
Specifications::Carbon R
-
Discipline: Enduro/AM
-
Material: Carbon
-
Front Travel: 160mm
-
Rear Travel: 150mm
-
Wheel Size: 29″
-
Warranty: Lifetime (frame)
Frame – Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock – Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings – medium compression, medium rebound, air volume spacer 0.2
Fork – Fox 38 29 Float GRIP Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset – Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing
Stem – Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar – Onoff Krypton 1.0 double butted 7075-T6 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips – Onoff Desert, 1lock-on, 135mm
Seatpost – Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm
Saddle – FIZIK Terra Aidon X5 145mm
Front brake – Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake – Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever – Sram DB8, tool reach adjust, lever pivot bushings
Rims – Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes – Mavic J-bend double butted, contactless lacing
Front hub – Mavic, Boost 15x110mm, IS 6 bolts
Rear hub – Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire – Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire – Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset – Race Face Aeffect ebike, 165mm
Rings – Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
Chain – Sram NX Eagle, 12s, Powerlock
Rear derailleur – Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers – Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Cassette – Sram PG-1230, 11-50T, 12s
Derailleur hanger – Sram UDH
Weight – 24,2 kg
Display – Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor – Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery – Bosch Powertube 750Wh
