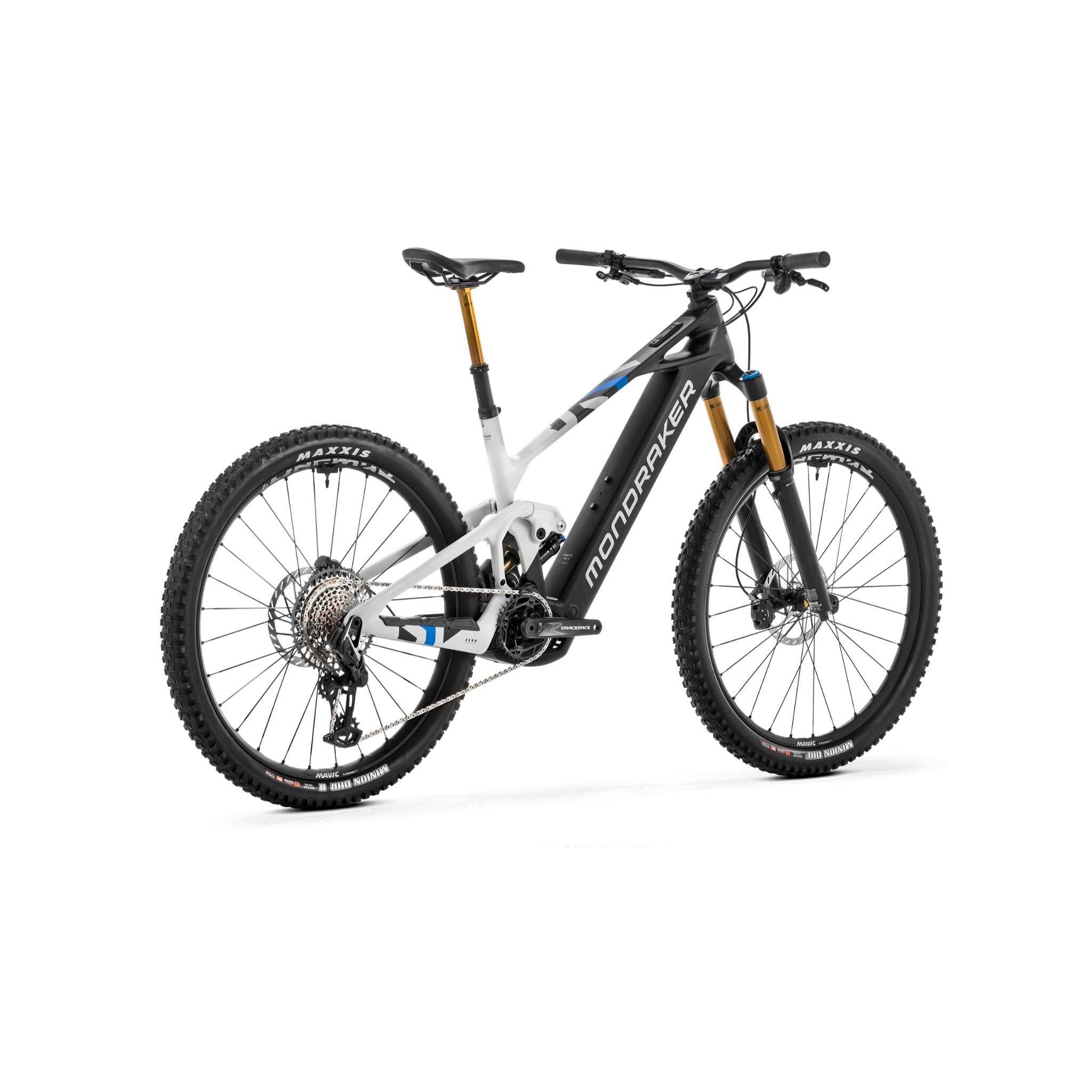

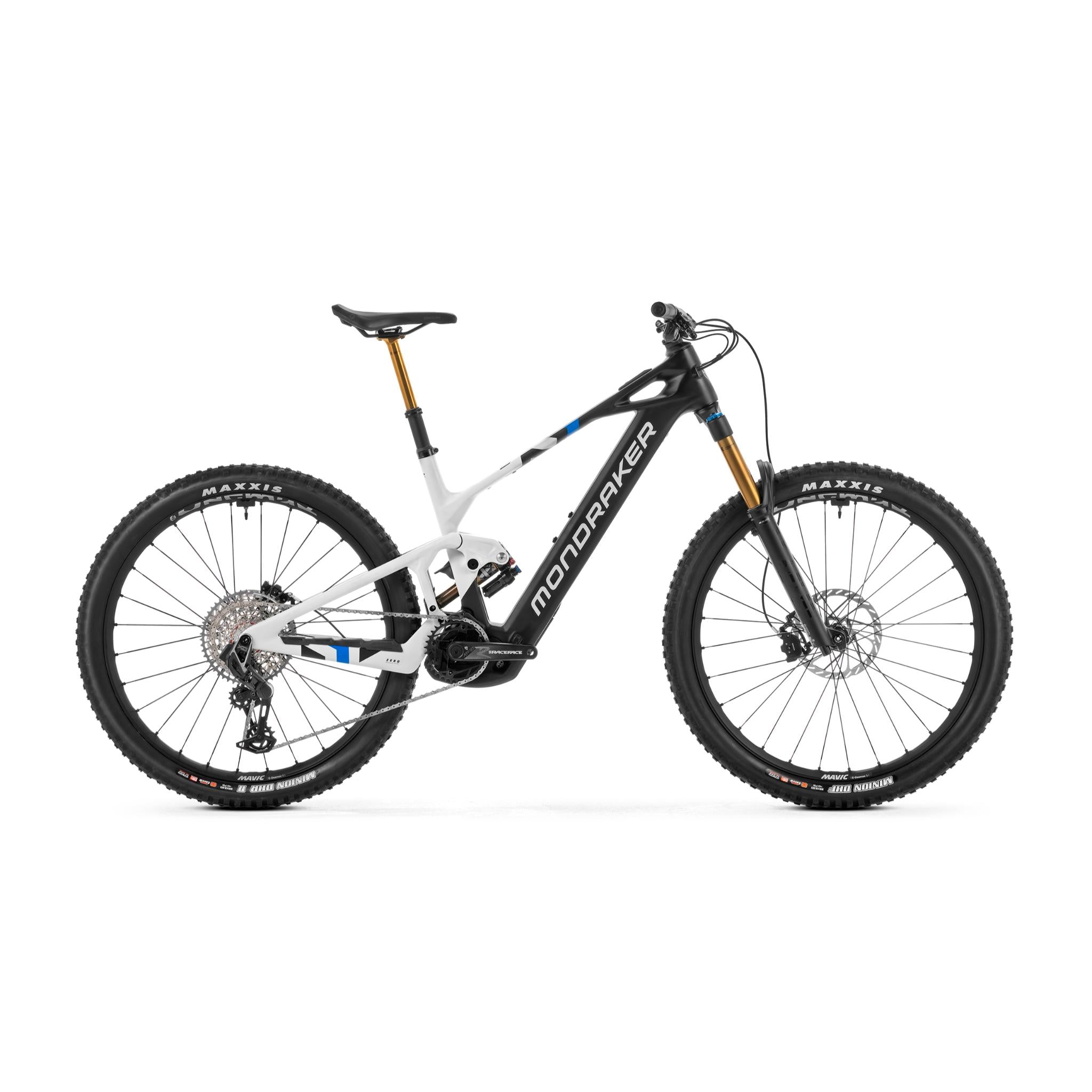

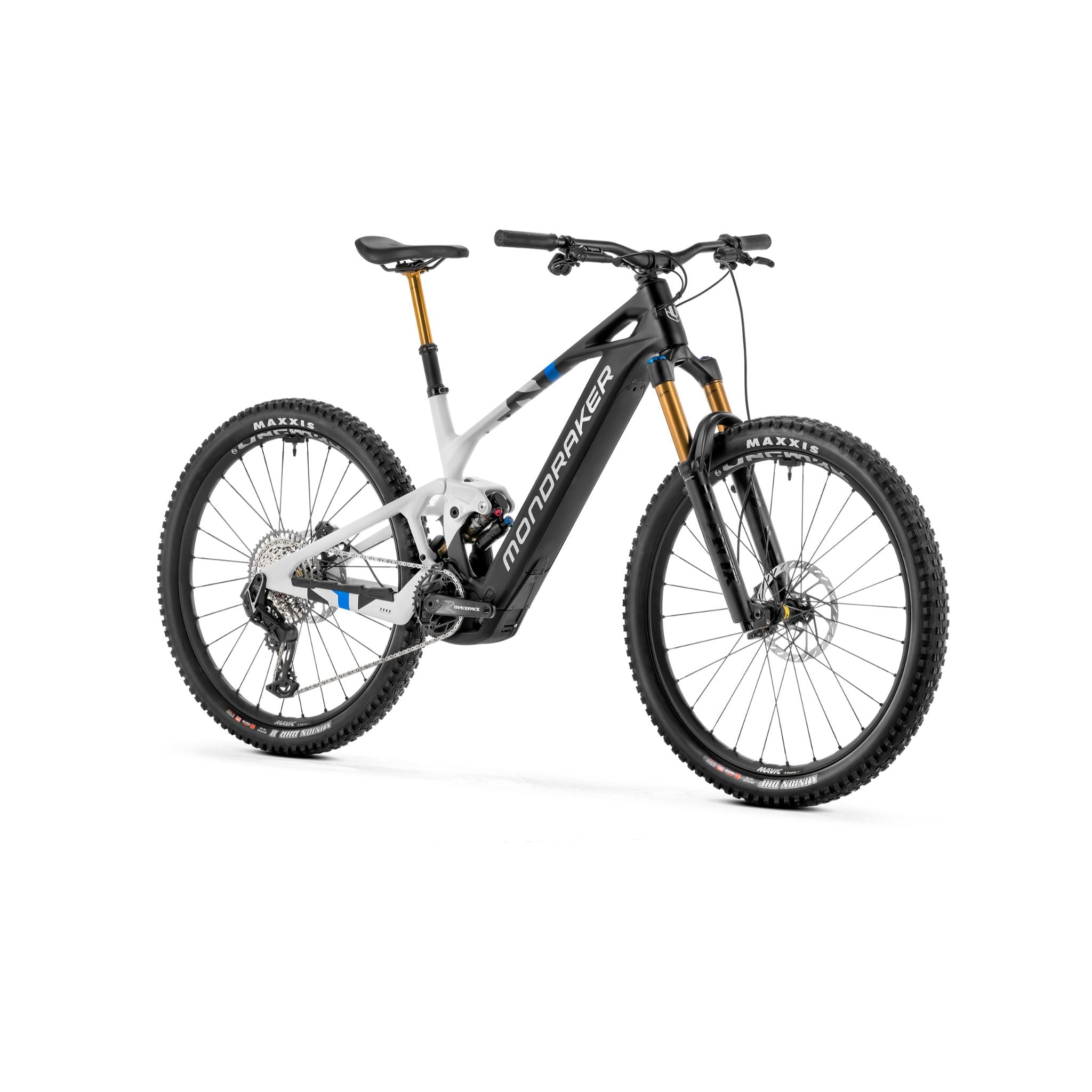

Mondraker Crafty Carbon RR S 2025

Mondraker’s Crafty electric mountain bike is best-seller,  perfect for tackling challenging terrains and features on longer rides. Boasting Mondraker’s renowned frame design and powered by the popular Bosch Smart system, this E-MTB is well-equipped for any terrain.

The Crafty Carbon RR S is the flagship model of the Crafty range and a top-selling option for high-end E-MTB’s. Its well-balanced design offers agility, reactivity, and efficiency whether tackling uphill or downhill terrain. The Zero Suspension System of the frame is specifically optimized to handle any unexpected obstacles on the trail. Equipped with Bosch’s Smart System motor, featuring a new wireless Mini Remote control and integrated System Controller, your cockpit is left uncluttered. A 750Wh battery ensures worry-free riding without any concerns of running out of range. This model has everything necessary to hit the trails with confidence.

Bosch Smart System –

The latest Bosch motor is a Performance Line CX SMART SYSTEM (BDU384Y) unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the Bosch 600Wh battery that allows you to enjoy even more kilometers of trail on a single charge.

SIZING –

• S: 160cm – 170cm
• M: 165cm – 180cm
• L: 175cm – 185cm
• XL: 185cm – 190cm+

Specifications::Carbon RR S

• Discipline: Enduro/AM

• Material: Carbon

• Front Travel: 160mm

• Rear Travel: 150mm

• Wheel Size: 29″

• Warranty: Lifetime (frame)

Frame – Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock – Fox Float X Factory Kashima EVOL 205x65mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings – Medium compression, Medium rebound, 0.2 volume spacer
Fork – Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset – Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing
Stem – Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar – Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips – Onoff Desert, 1lock-on, 135mm
Seatpost – Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm-120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle – Ergon SM-10
Front brake – Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts onepiece rotor, steel-backed metal sintered pads
Rear brake – Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts onepiece rotor, steel-backed metal sintered pads
Brake lever – Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims – Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes – Mavic straight-pull double butted, contactless lacing
Front hub – Mavic, Boost 15x110mm, IS 6 bolts
Rear hub – Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire – Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire – Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset – Race Face Aeffect-R ebike, 160mm
Rings – Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain – Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur – Sram X0 Eagle AXS, T-Type, 12s
Shift levers – Sram Eagle AXS Pod MMX, 12s
Cassette – Sram XS-1295, 10-52T, T-Type, 12s
Display – Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor – Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery – Bosch Powertube 600Wh
