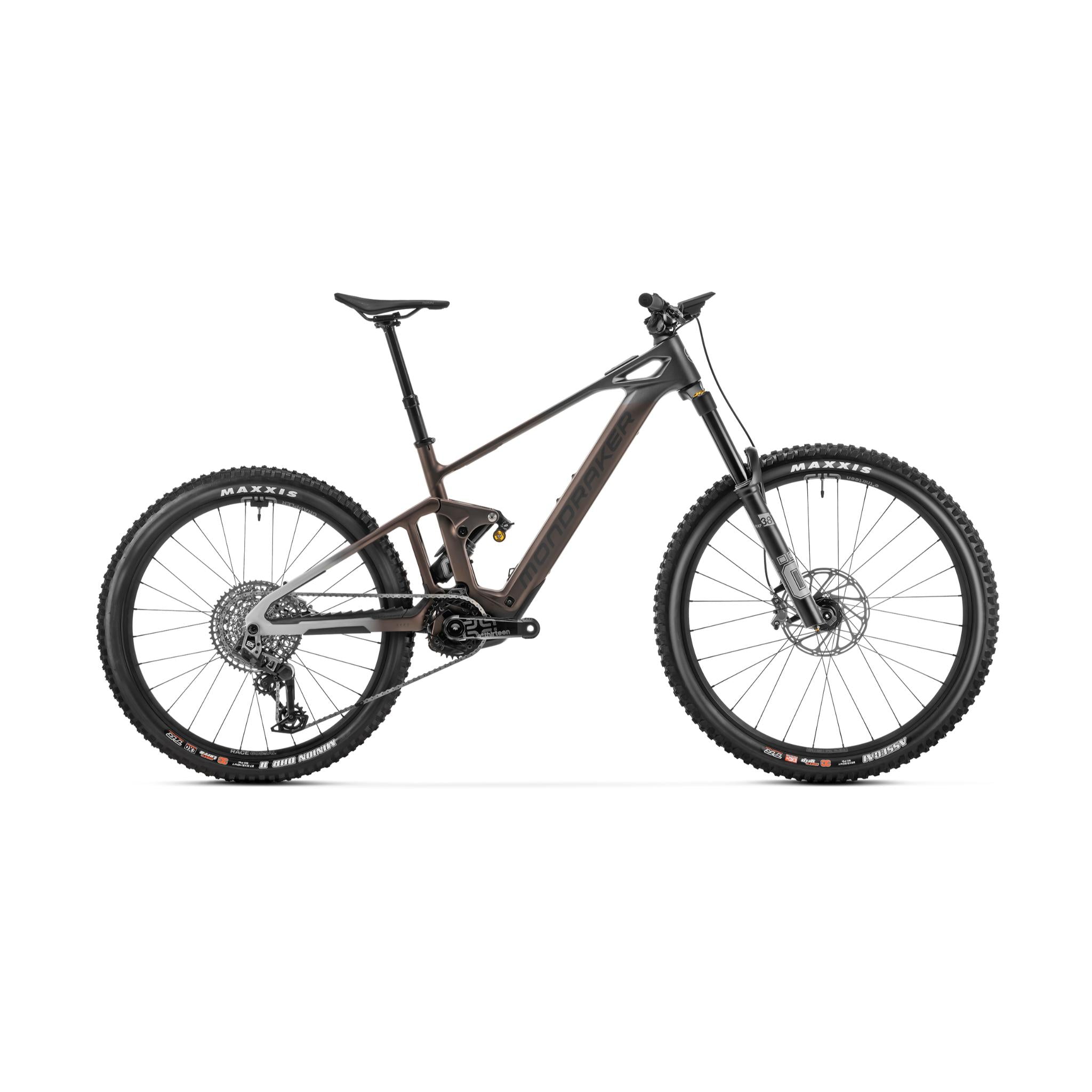

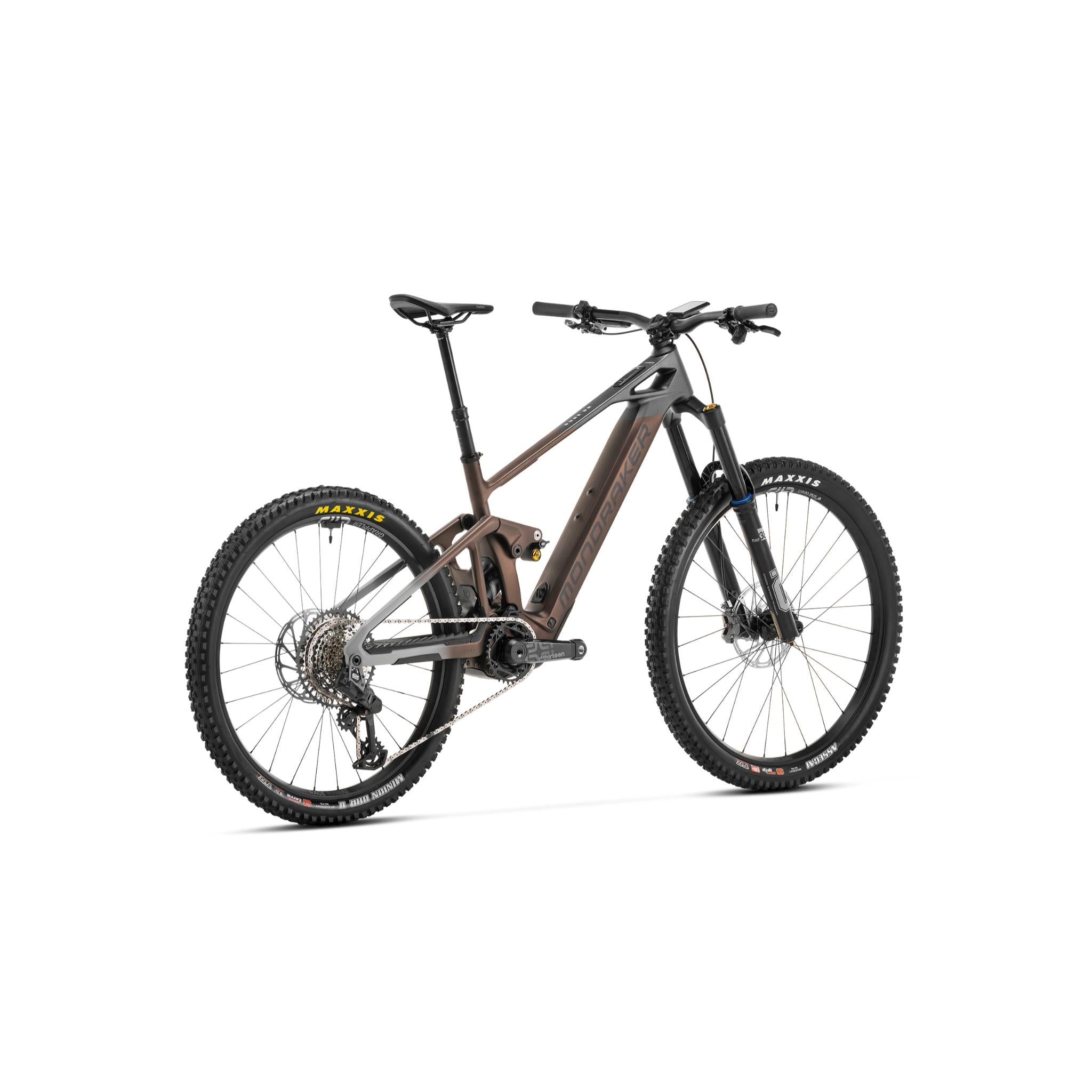

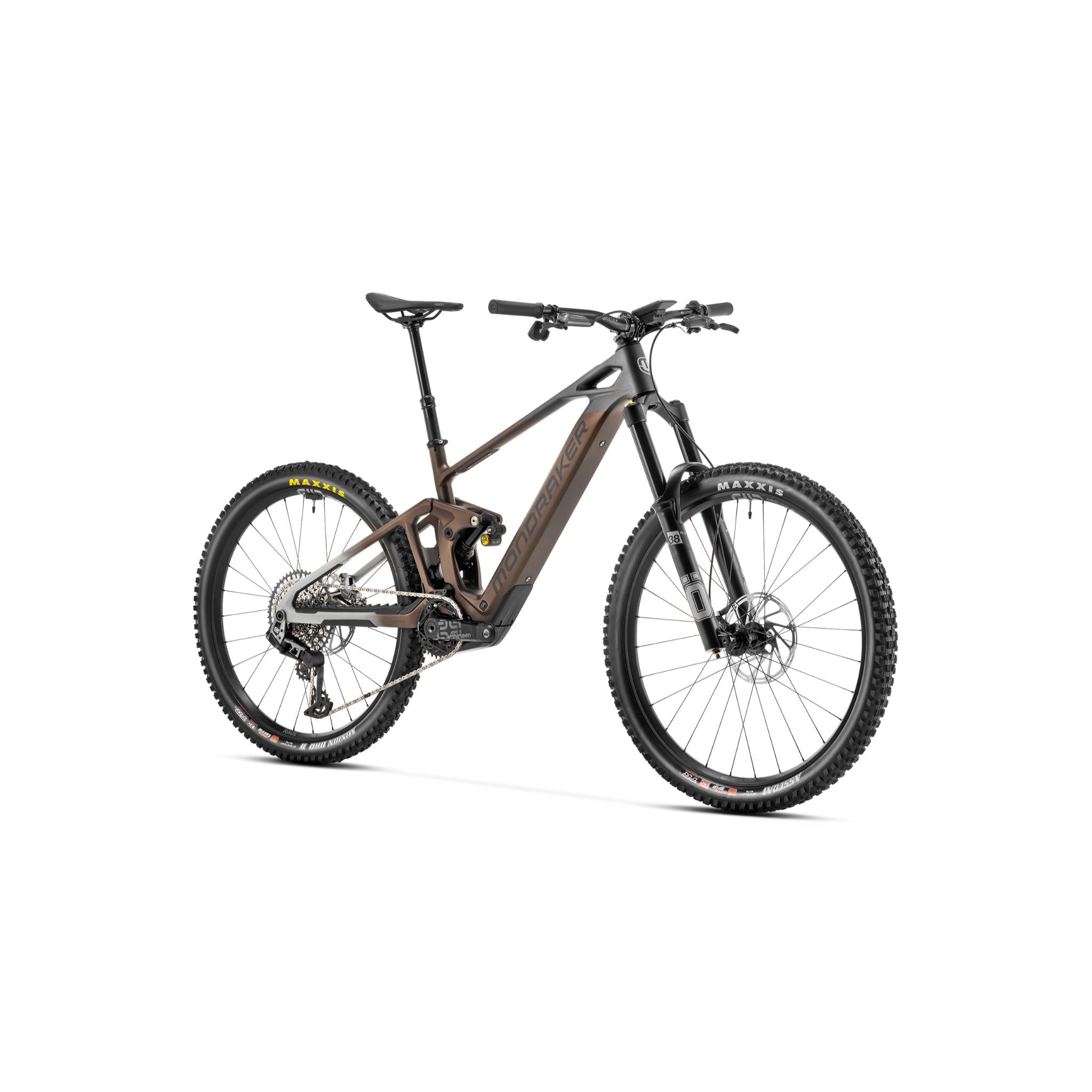

Mondraker’s Dune is the light weight, MX wheel electric enduro mountain bike that you have been looking for. Stealth carbon frame with 170mm front/165mm rear travel powered by the rider favourite Bosch SX motor and a build kit to die for.
The Dune RR is the mid spec level and has an outstanding build kit, such as Ohlins suspension, SRAM GX AXS transmission 12-speed wireless drivetrain, SRAM Code Bronze brakes, Mondraker dropper post, e13 wheelset and Maxxis Tyres.
The Dune frame has been designed by Mondraker first and foremost to be an exceptional performer over challenging terrain, pretty much the complete bike. Making easy work of technical descents and fast swooping trails while remaining engaging and playful. The riding position has been optimised to make sure the Dune is also pleasant on climbs and longer pedalling sections.
At the heart of the Dune is the Bosch Performance SX drive unit. 55nm of powerful pedal assist, a hugely popular motor choice due to the natural pedal feel and customisable assistance modes. This set up is powered by a 400wh battery, plenty of juice for a days ride, though you have the option to add a range extender (sold separately).
Key Features –
Stealth Air Carbon structure frameset.
Updated Zero Suspension System kinematics.
170 front 165mm rear wheel travel
2.650 grams frameset weight w/o shock (size M).
Mullet 29” front 27,5” rear dedicated wheels.
BOSCH PERFORMANCE SX drive unit with 55Nm.
400 Wh internal integrated and removable battery.
1.500m+ elevation gain with 400Wh battery.
4 completely customisable assistance modes.
250Wh (+60%) PowerMore Range extender compatible.
Integrated System Controller frameset switch with Kiox 500 handlebar display.
SIZING –
- S: 160cm – 170cm
- M: 165cm – 180cm
- L: 175cm – 185cm
- XL: 185cm – 190cm+
Specifications::Dune RR
-
Discipline: Enduro/AM
-
Material: Stealth Carbon
-
Front Travel: 170mm
-
Rear Travel: 165mm
-
Wheel Size: MX”
-
Warranty: Lifetime (frame)
Frame – Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers
Shock – Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, lowspeed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fork – Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, lowspeed compression, rebound, air preload, ramp chamber
Headset – Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing
Stem – Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar – Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips – Onoff Desert, 1lock-on, 135mm
Dropper Seatpost – Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95 125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm
Saddle – Fizik Terra Aidon Slim X5, 145mm
Brakes – Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Wheelset – e*thirteen Grappler Race, Hookless 6069 Welded Aluminium 30mm internal width, tubeless ready, 28F / 32R spokes 29 front, 27’5 rear e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front Hub – e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear Hub – e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front Tyre – Maxxis Assegai 29×2.5WT, tubeless ready, 3C MaxxGrip compound, EXO+ casing, 60TPI, folding bead
Rear Tyre – Maxxis Minion DHR II 27’5×2.4 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
E.13 E*Spec Plus, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Crankset – Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain – Sram GX Eagle T-Type, 12s, Powerlock
Derailleur – Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shifter – Sram Eagle AXS Pod MMX, 12s
Cassette – Sram XS-1275, 10-52T, T-Type, 12s
Motor – Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery – Bosch Compact Powertube 400Wh
Screen – Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Hanger – Sram UDH
