The new Shuttle LT is the hyper capable brainchild of the Pivot Cycles engineering team. Pivot’s deadly accurate combination of dw-Link suspension and proprietary carbon molding technology come together in a bike that embodies ambition. The Shuttle LT is not just more, it’s more of everything – travel, attention to detail, assist, range, capability, and performance. Fierce enough for the toughest enduro racecourses in the world but possessing the magical Pivot X-factor that makes it a joy to ride any day, anywhere, the Shuttle LT is everything you want…and more.
Key Features –
- 170/160mm travel
- DW-Link suspension system
- Carbon fibre frame
- 29″ wheels
- Shimano EP8 motor
- 756wh battery
The Pivot Shuttle LT e-mtb is offered in 2 specification levels, the Ride SLX/XT and the Team XTR.

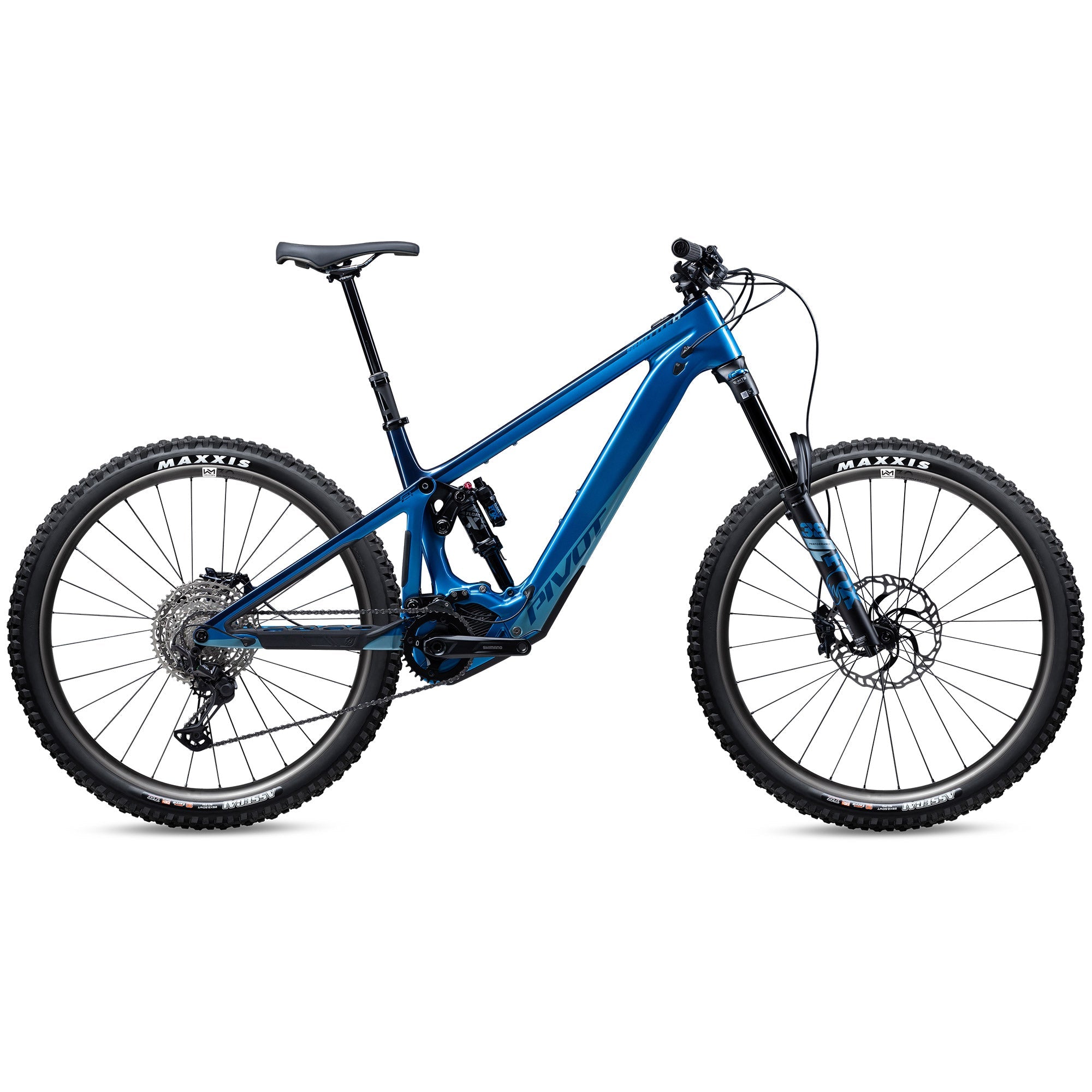

Specifications::Ride SLX/XT
-
Discipline: Trail/Enduro
-
Material: Carbon
-
Front Travel: 170mm
-
Rear Travel: 160mm
-
Wheel Size: 29″
-
Warranty: Lifetime (frame)
REAR SHOCK Fox Performance Float X
FORK Fox Performance E-MTB 38 29”, 44mm offset, GRIP – 170mm
HEADSET Pivot Precision Sealed Cartridge
REAR DERAILLEUR Shimano XT M8100 SGS 12-Speed
SHIFTER Shimano SLX M7100 ISPEC EV 12-Speed
CASSETTE Shimano Deore M6100 10-51t
CHAIN Shimano Deore CN-M6100 12 Speed
CRANK SET Shimano EM600 E-MTB 34t
BRAKES Shimano SLX M7120 4-piston
ROTORS F – Galfer Rotor 223mm | R – Galfer Rotor 203mm
DRIVE UNIT Shimano Steps DU-EP800
BATTERY 756Wh removable battery
HANDLEBAR Phoenix Race Low Rise Aluminium | SM, MD, 780 / LG, XL, 800 Width
GRIPS Phoenix Factory Lock-On
STEM Phoenix Team Enduro/Trail
SEATPOST E13 Vario 150mm – 180mm (SM-LG), 180mm – 210mm (XL)
SADDLE Pivot Pro E-Bike
WHEELS DT Swiss Hybrid H1900. 30mm – 29” | 15×110 F / 12×157 R
TIRES F – Maxxis Assegai 29” x 2.5” TR, EXO+, 3C | R – Maxxis Assegai 29” x 2.5” TR, EXO+, 3C

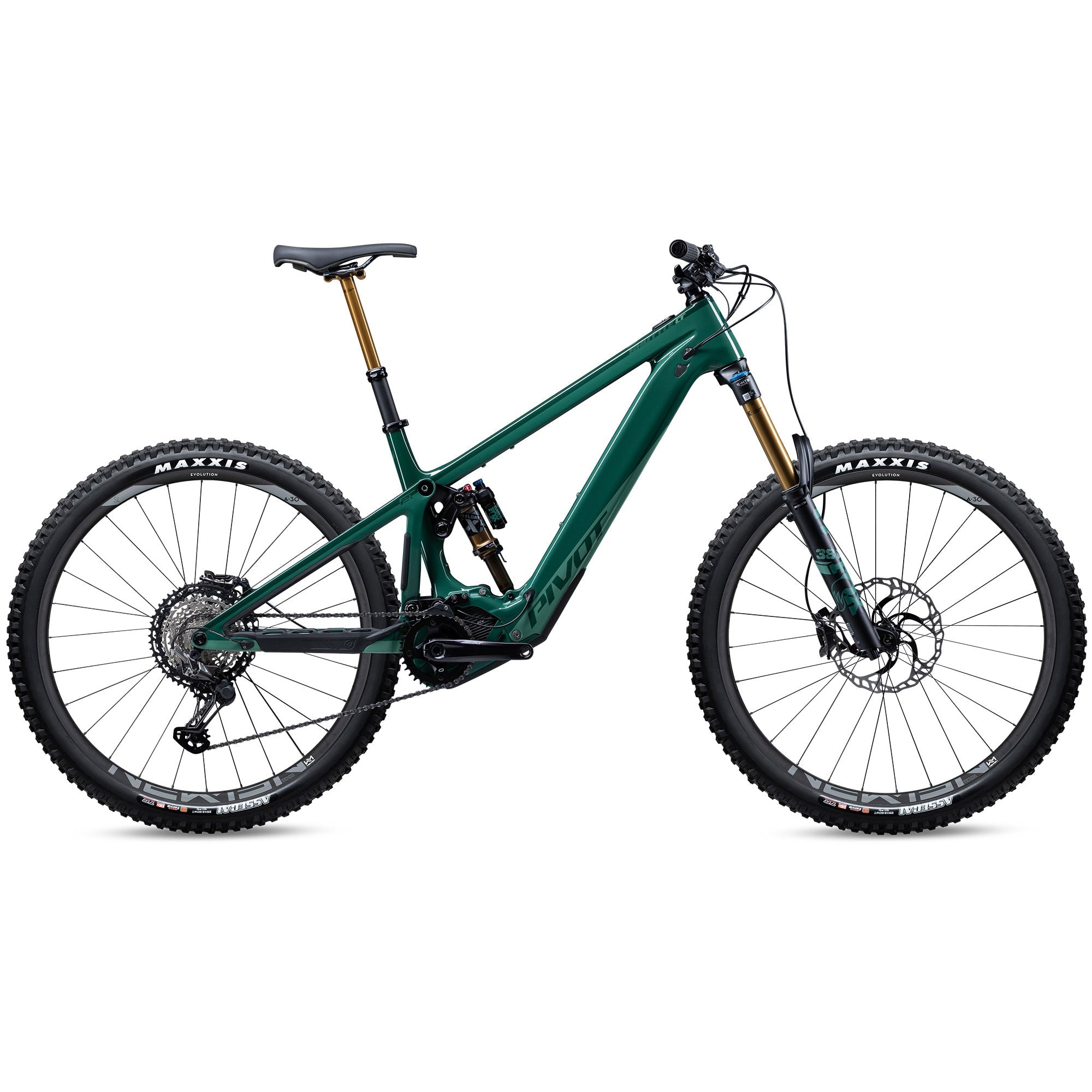

Specifications::Pro XTR
-
Discipline: Trail/Enduro
-
Material: Carbon
-
Front Travel: 170mm
-
Rear Travel: 160mm
-
Wheel Size: 29″
-
Warranty: Lifetime (frame)
REAR SHOCK Fox Factory Float X
FORK Fox Factory E-MTB 38 29”, 44mm offset, GRIP2 – 170mm
HEADSET Pivot Precision Sealed Cartridge
REAR DERAILLEUR Shimano XTR SGS 12-S
SHIFTER Shimano XTR M9100 12-Speed
CASSETTE Shimano XT M8100 10-51t
CHAIN Shimano CN-M8100 12-Speed
CRANK SET Shimano XT M8150 w/ Shimano E-MTB 34
BRAKES Shimano XTR M9120 4-piston
ROTORS F – Galfer Rotor 223mm | R – Galfer Rotor 203mm
DRIVE UNIT Shimano Steps DU-EP800
BATTERY 756Wh removable battery
HANDLEBAR Phoenix Team Low Rise Carbon | SM, MD, 780 / LG, XL, 800 Width
GRIPS Phoenix Factory Lock-On
STEM Phoenix Team Enduro/Trail
SEATPOST Phoenix Team Low Rise Carbon | SM, MD, 780 / LG, XL, 800 Width
SADDLE Pivot Pro E-Bike
WHEELS DT Swiss Hybrid HX1501, 30mm – 29” | 15×110 F / 12×157 R
TIRES F – Maxxis Assegai 29” x 2.5” TR, EXO+, 3C | R – Maxxis Assegai 29” x 2.5” TR, EXO+, 3C
