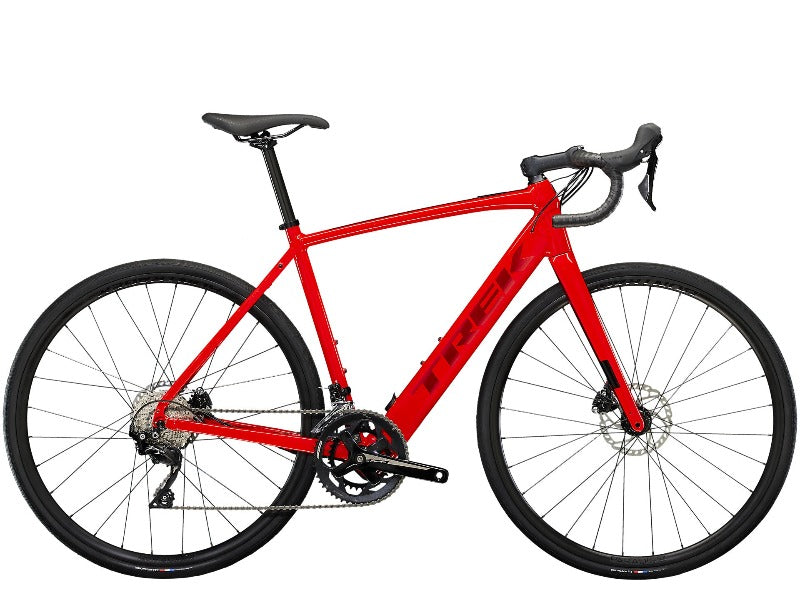

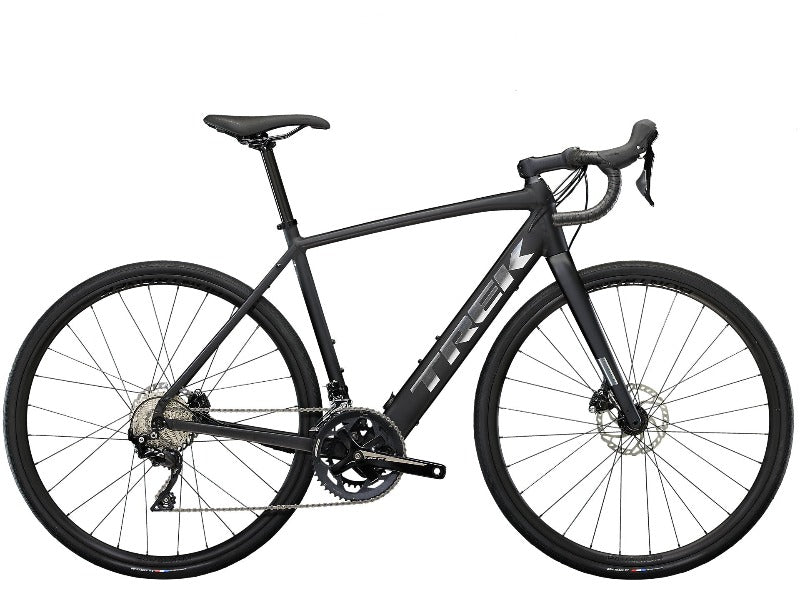

The Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain or push yourself harder on training rides. The electric boost of the Domane+ AL 5 lets you maintain reliable speeds over difficult terrain and provides a powerful ride experience for any level of cyclist. The natural-feeling HyDrive pedal assist system adds further convenience and control over every ride.
- Frame 100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts
- Fork Domane+ carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat mount disc, 12×100 mm thru axle
- Hub front Formula RX-812 alloy, sealed bearing, 6-bolt, 100×12 mm thru axle
- Skewer front Bontrager Switch thru axle, removable lever
- Hub rear HyDrive hub drive motor, 40 Nm, 250 W
- Rim Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve
- Tyre Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700×32 c
- *Shifter
- Size: 49, 52 Shimano 105 R7025, short-reach lever, 11-speed
- Size: 54, 56, 58, 61 Shimano 105 R7020, 11-speed
- Front derailleur Shimano 105 R7000, 31 mm clamp
- Rear derailleur Shimano 105 R7000, long cage, 34T max cog
- *Crank
- Size: 49 FSA Vero Pro, 50/34, 165 mm
- Size: 52 FSA Vero Pro, 50/34, 170 mm
- Size: 54, 56FSA Vero Pro, 50/34, 172.5 mm
- Size: 58, 61 FSA Vero Pro, 50/34, 175 mm
- Bottom bracket Torque sensor, threaded, 110 mm spindle
- Cassette Shimano 105 HG700-11, 11-34, 11 speed
- Chain Shimano 105 HG601, 11-speed
- *Saddle
- Size: 49, 52 Bontrager Verse Comp, steel rails, 155 mm width
- Size: 54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145 mm width
- Seatpost Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
- *Handlebar
- Size: 49 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width
- Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width
- Size: 54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width
- Size: 58, 61 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
- Handlebar tape Bontrager Supertack Perf tape
- *Stem
- Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
- Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
- Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
- Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
- Brake rotor Shimano RT66, 6-bolt, 160 mm
- Battery 250 Wh
- Charger 2A, 42V output, 100V–240V AC input
- Weight 56 – 14.06 kg / 31 lbs
- Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
