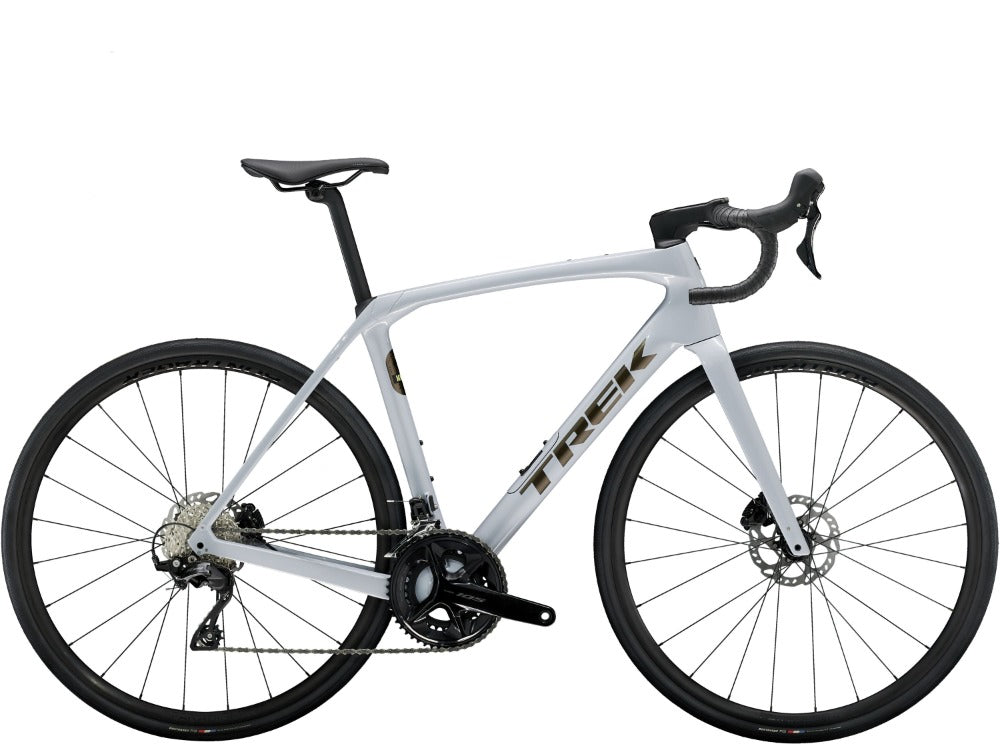

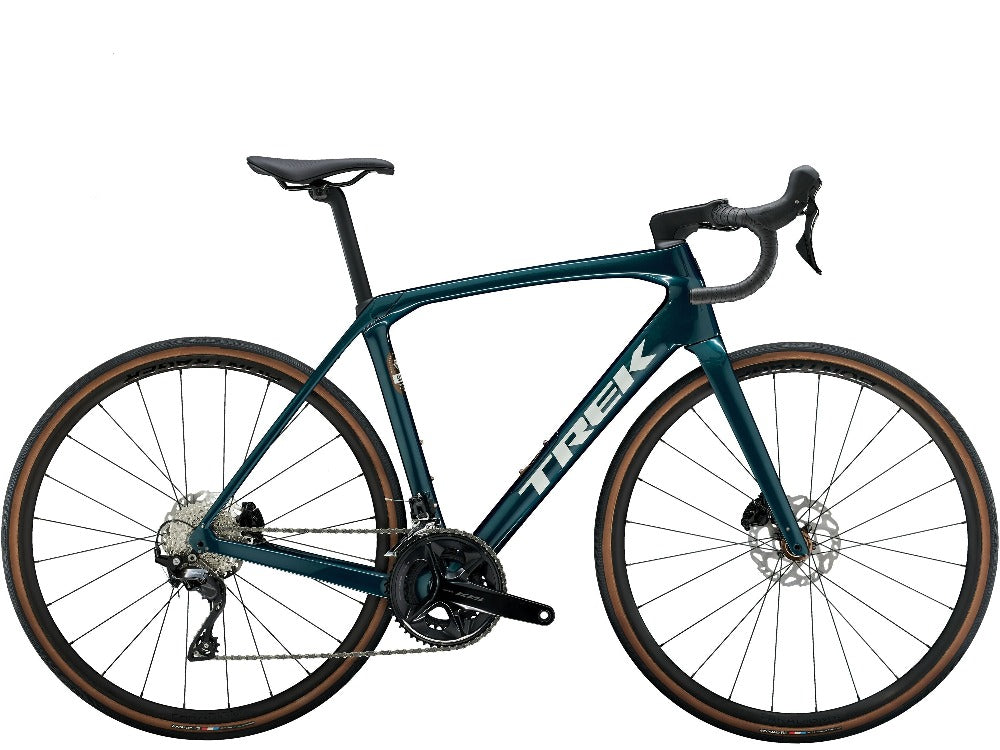

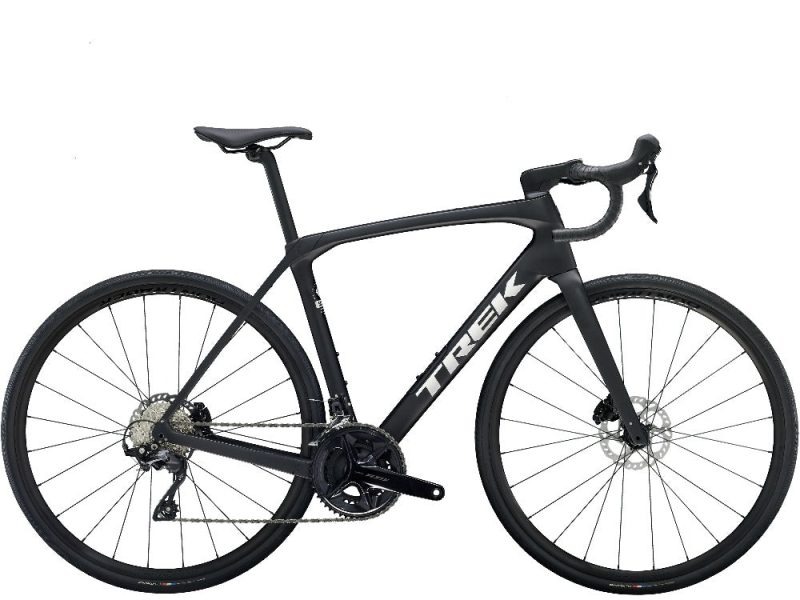

The Trek Domane SL 5 Gen 4 Road Bike 2025 utilizes a 500 Series OCLV Carbon frame and fork for a lightweight and responsive riding experience. Its specialized geometry and adjustable-tension IsoSpeed rear offer exceptional road-smoothing abilities. With the incorporation of Shimano 105 components and hydro disc brakes, rough roads are easily conquered, and the 700×32 tyres provide reliable grip and stability. This carbon-built bike excels in both comfort and performance.
- Frame 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142×12 mm thru axle
- Fork Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
- Hub front Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle
- Skewer front Bontrager Switch thru-axle, removable lever
- Hub rear Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle
- Skewer rear Bontrager Switch thru-axle, removable lever
- Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
- Spokes 14 g stainless steel, black
- Tyre Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700×32 mm
- Rim strip Bontrager Aeolus XXX rim strip
- *Shifter
- Size: 44, 47, 50, 52 Shimano 105 R7025, short-reach lever, 11-speed
- Size: 54, 56, 58, 60, 62 Shimano 105 R7020, 11-speed
- Front derailleur Shimano 105 R7000, braze-on
- Rear derailleur Shimano 105 R7000, long cage, 34T max cog
- *Crank
- Size: 44, 47 Shimano 105 R7000, 50/34 (compact), 165 mm length
- Size: 50, 52 Shimano 105 R7000, 50/34 (compact), 170 mm length
- Size: 54, 56 Shimano 105 R7000, 50/34 (compact), 172.5 mm length
- Size: 58, 60, 62 Shimano 105 R7000, 50/34 (compact), 175 mm length
- Bottom bracket Praxis, T47 threaded, internal bearing
- Cassette Shimano 105 HG700-11, 11-34, 11-speed
- Chain Shimano 105 HG601, 11-speed
- *Saddle
- Size: 44, 47, 50, 52 Bontrager Verse Comp, steel rails, 155 mm width
- Size: 54, 56, 58, 60, 62 Bontrager Verse Comp, steel rails, 145 mm width
- *Seatpost
- Size: 44, 47, 50, 52, 54, 56 Domane carbon seat post, KVF shaping, 20 mm offset, 280 mm length
- Size: 58, 60, 62 Domane carbon seat post, KVF shaping, 20 mm offset, 320 mm length
- *Handlebar
- Size: 44, 47 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 36 cm width
- Size: 50 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width
- Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width
- Size: 54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width
- Size: 58, 60, 62 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
- Handlebar tape Bontrager Supertack Perf tape
- *Stem Size: 44 Trek RCS Pro, -7-degree, 60 mm length
- Size: 47 Trek RCS Pro, -7-degree, 70 mm length
- Size: 50 Trek RCS Pro, -7-degree, 80 mm length
- Size: 52, 54 Trek RCS Pro, -7-degree, 90 mm length
- Size: 56, 58 Trek RCS Pro, -7-degree, 100 mm length
- Size: 60, 62 Trek RCS Pro, -7-degree, 110 mm length
- Brake Shimano 105 hydraulic disc
- Brake rotor Shimano RT70, CentreLock, 160 mm
- Bag Bontrager BITS Internal Frame Storage Bag
