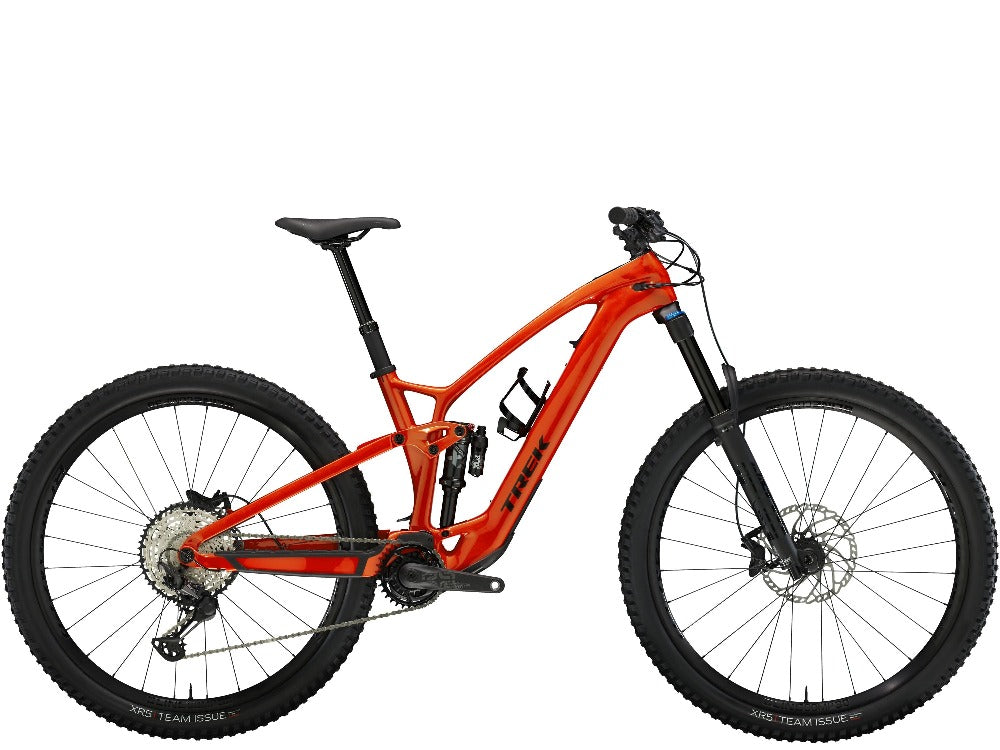

The Fuel EXe 9.7 redefines e-mountain biking with an entirely new motor that tucks away neatly for a ride that’s light, lively and just as playful as a traditional mountain bike, with the added benefit of pedal-assist to help you crush climbs. An upgraded suspension package pairs with cherry-picked components for snappy shifting and precise modulation on the trail. All that, and a lightweight carbon chassis to keep your ride nimble and stiff with just the right amount of vibration-damping goodness for when the trail gets rowdy.
- Frame OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
- Fork Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
- Shock Fox Performance Float X, 2-position damper, 205 mm x 60 mm
- Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
- Wheel rear Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
- Hub rear Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
- Skewer rear Bontrager Switch thru-axle, removable lever
- Rim Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve
- *Tyre
- Size: S, M, L, XL Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29×2.50″
- Size: S, M, L, XL Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29×2.50″
- Tyre part Bontrager TLR sealant, 180 ml/6 oz
- Rim strip Bontrager TLR
- Shifter Shimano SLX M7100, 12-speed
- Rear derailleur Shimano XT M8100, long cage
- *Crank arm
- Size: S, M, L, XL E*thirteen E*spec Plus, 165 mm length
- Size: S, M, L, XL E*thirteen E*spec Plus, 170 mm length
- Chainring E*thirteen E*spec, 32T alloy ring, 55 mm chainline
- Cassette Shimano SLX M7100, 10-51, 12-speed
- Chain Shimano SLX M7100, 12-speed
- Saddle Bontrager Arvada, austenite rails, 138 mm width
- *Seatpost
- Size: S TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
- Size: M TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
- Size: L, XLTranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
- Handlebar Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
- Grips Bontrager XR Trail Elite, nylon lock-on
- Stem Bontrager Elite, 35 mm, 0-degree, 45 mm length
- Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
- *Brake rotor
- Size: S, M, L, XL SRAM CenterLine, 6-bolt, round edge, 200 mm
- Size: S, M, L, XL Shimano RT66, 6-bolt, 203 mm
- Brakeset SRAM Code R 4-piston hydraulic disc
- Battery TQ 360Wh
- Motor TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
- Computer TQ LED display with Bluetooth & ANT+ connectivity
- Electronics TQ 4A charger
- Weight M – 19.05 kg / 42 lbs (with TLR sealant, no tubes)
- Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
