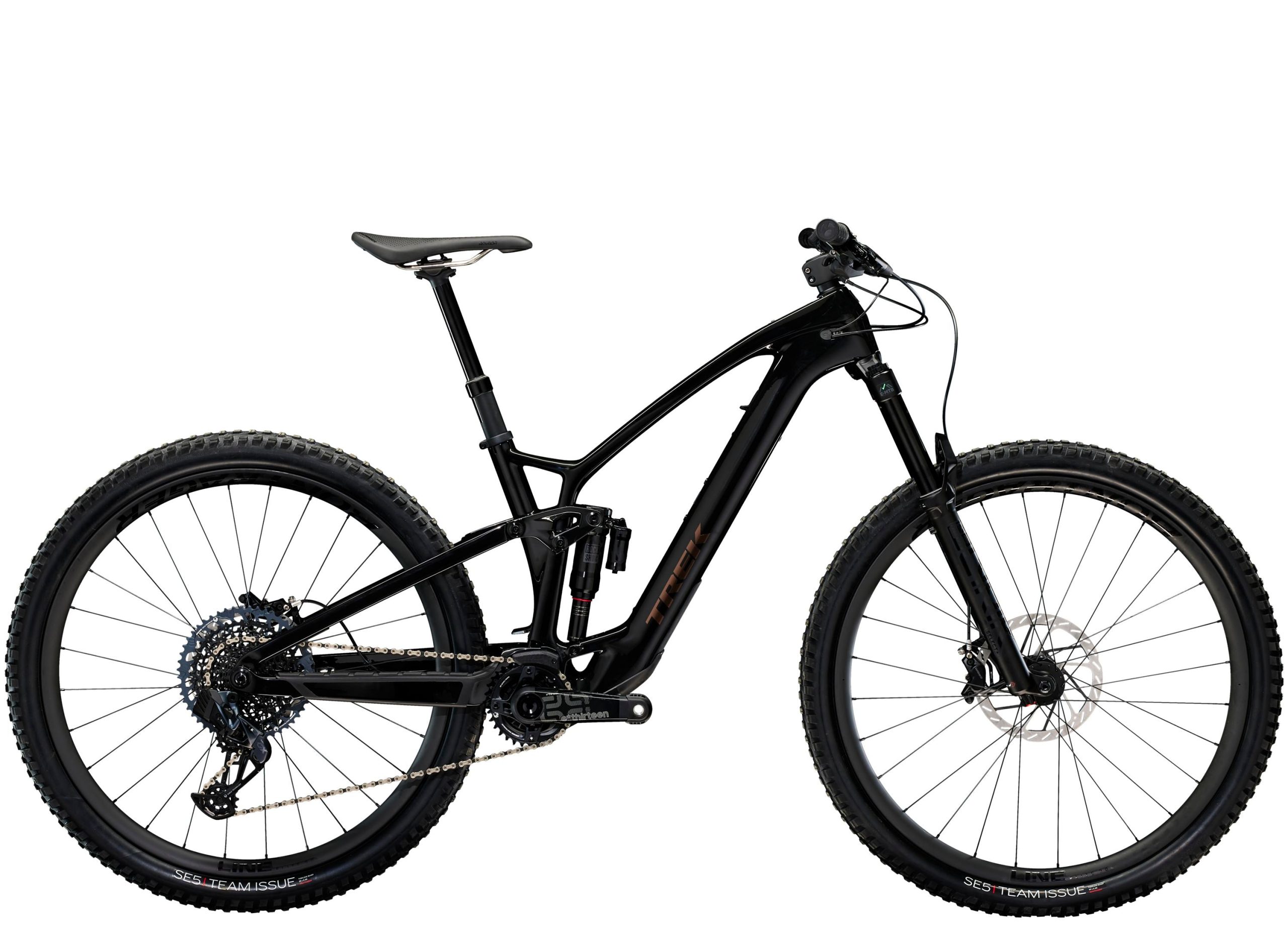

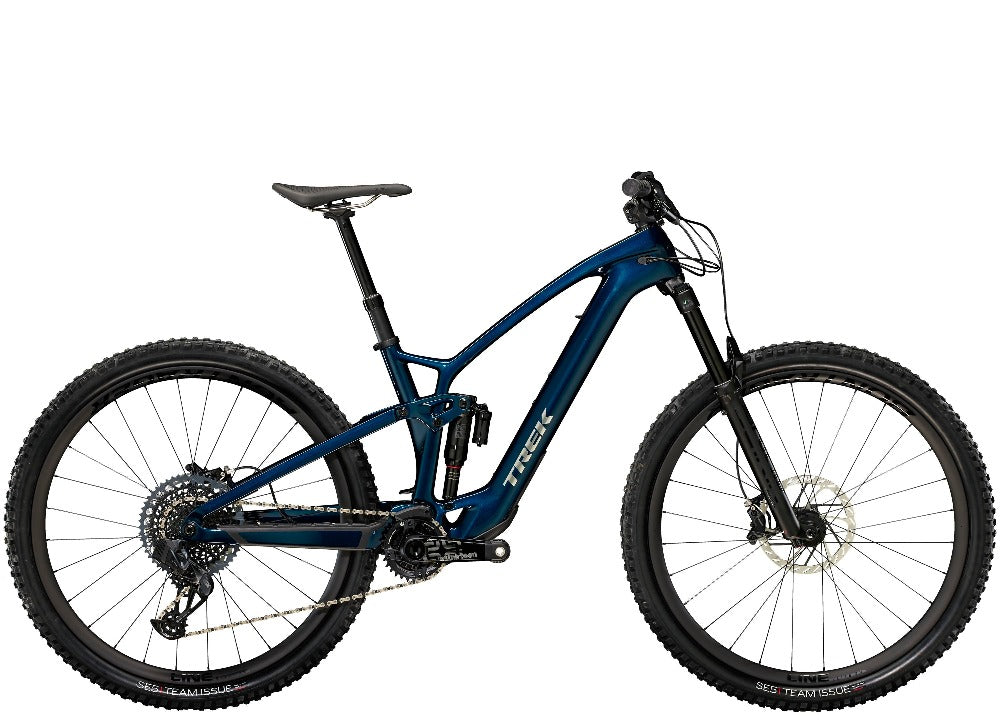

The Trek Fuel EXe 9.8 GX AXS Electric Mountain Bike is a high-performance trail bike designed for riders seeking a traditional mountain biking experience with a boost in pedal power. It features an OCLV Mountain Carbon frame with a 360 Wh battery, TQ harmonic pin ring transmission, smart charging port, integrated LED display, and discreet handlebar remote. The bike also boasts a 150 mm RockShox Lyrik Select+ fork and 140 mm RockShox Super Deluxe Select+ rear suspension, providing a smooth and controlled ride on technical and flow trails. With wireless SRAM GX AXS drivetrain and carbon wheels, this bike offers a minimalist and clean cockpit. Its future-minded technology, including the space-approved TQ transmission, makes it a top choice for riders looking to conquer any terrain.
- Frame OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
- Fork RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
- Shock RockShox Super Deluxe Select+ RT, 205mm x 60mm
- Wheel front Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29″
- Wheel rear Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 29″
- Skewer rear Bontrager Switch thru-axle, removable lever
- *Tyre
- Size: S, M, L, XL Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″
- Size: S, M, L, XL Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29×2.50″
- Tyre part Bontrager TLR sealant, 180 ml/6 oz
- Rim strip Bontrager TLR
- Battery TQ 360Wh
- Computer TQ LED display with Bluetooth & ANT+ connectivity
- Motor TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
- Shifter SRAM GX Eagle AXS, 12 speed
- Rear derailleur SRAM GX Eagle AXS
- *Crank
- Size: S, M, L, XL E*thirteen E*spec Plus, 165 mm length
- Size: S, M, L, XL E*thirteen E*spec Race carbon, 165 mm length
- Chainring SRAM X-SYNC, 32T, alloy
- Cassette SRAM Eagle XG-1275, 10-52, 12-speed
- Chain SRAM GX Eagle, 12-speed
- Saddle Bontrager Arvada, austenite rails, 138 mm width
- *Seatpost
- Size: S Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
- Size: M Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
- Size: L Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
- Size: XL Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
- *Handlebar/stem (integrated)
- Size: S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
- Size: M, L, XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
- Grips Bontrager XR Trail Elite, nylon lock-on
- Brake rotor SRAM 6-bolt, 200 mm
- Brakeset SRAM Code R 4-piston hydraulic disc
- *Electronics
- Size: S, M, L, XL TQ 4A charger
- Size: S, M, L, XL SRAM AXS aux power cable
