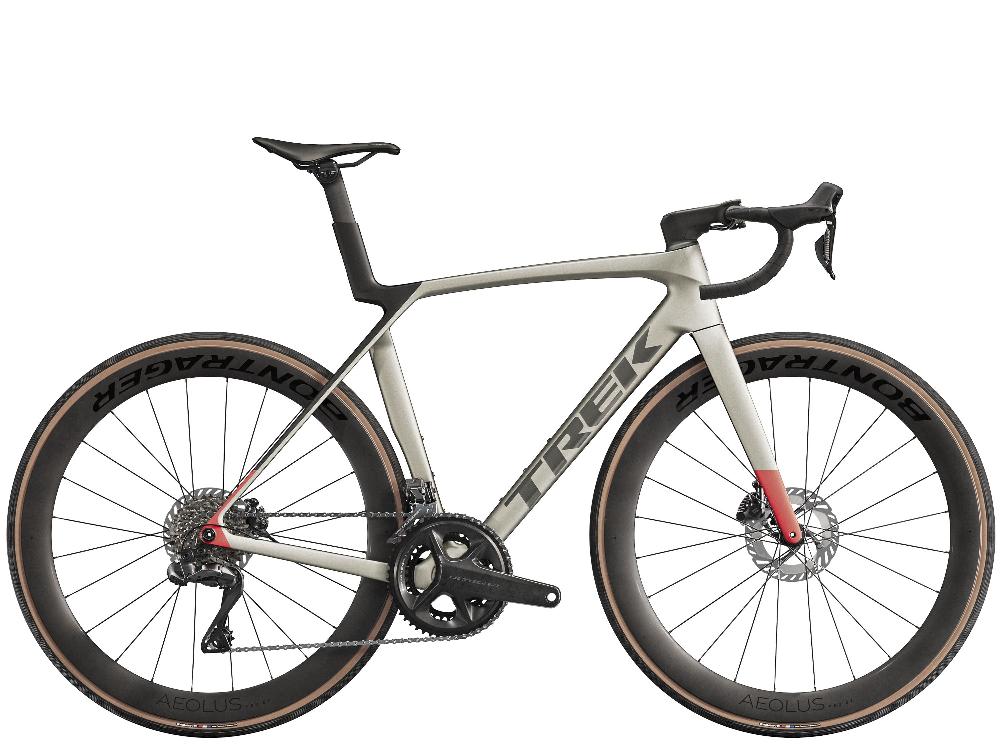

The Madone SL 7 Gen 8 offers the perfect blend of performance and affordability. With its lightweight construction, aero design for reduced drag, and IsoFlow technology for added comfort, this race-ready road bike is the ultimate choice for any rider. Made with 500 Series OCLV carbon, a two-piece handlebar and stem, and a Shimano Ultegra Di2 wireless electronic drivetrain, this bike delivers smooth shifts and top-notch performance, complete with carbon wheels for maximum lightness.
Colours: Matte Lunar Silver
- Frame 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle
Fork Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle - Shifter Shimano Ultegra R8170 Di2, 12-speed
*Crank - Size: XS, S Shimano Ultegra R8100, 50/34, 165 mm length
- Size: M Shimano Ultegra R8100, 50/34, 170 mm length
- Size: ML, L Shimano Ultegra R8100, 50/34, 172.5 mm length
- Size: XL Shimano Ultegra R8100, 50/34, 175 mm length
- Bottom bracket Praxis, T47 threaded, internal bearing
- Wheel front Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100×12 mm thru axle
- Wheel rear Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142×12 mm thru axle
- Skewer front Bontrager Switch chamfered thru axle, removable lever
- Skewer rear Bontrager Switch chamfered thru axle, removable lever
- Tyre Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700×28 mm
- *Saddle
- Size: XS, S Bontrager Aeolus Elite, austenite rails, 155 mm width
- Size: M, ML, L, XL Bontrager Aeolus Elite, austenite rails, 145 mm width
- *Seatpost
- Size: XS, S, M, XL Madone aero carbon seat post, 0 mm offset, short length
- Size: ML, L Madone aero carbon seat post, 0 mm offset, long length
- *Handlebar
- Size: XS Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width
- Size: S Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width
- Size: M, ML, L Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 42 cm width
- Size: XL Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width
- *Stem
- Size: XS Trek RCS Pro, -7-degree, 80 mm length
- Size: S, M Trek RCS Pro, -7-degree, 90 mm length
- Size: ML, L Trek RCS Pro, -7-degree, 100 mm length
- Size: XL Trek RCS Pro, -7-degree, 110 mm length
- Brake rotor Shimano CL800, CentreLock, 160 mm
- Rotor size Max brake rotor sizes: 180 mm front, 160 mm rear
- Weight ML – 7.88 kg / 17.38 lbs (with TLR sealant, no tubes)
- Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
