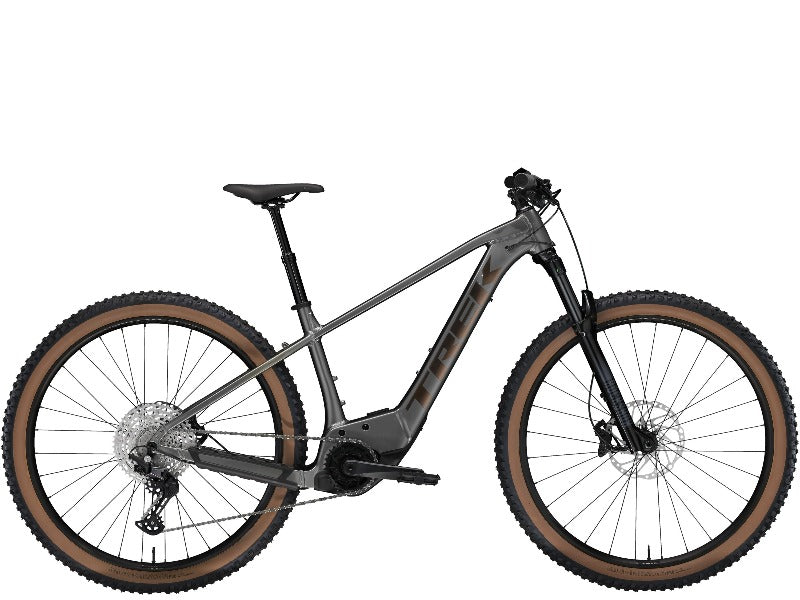

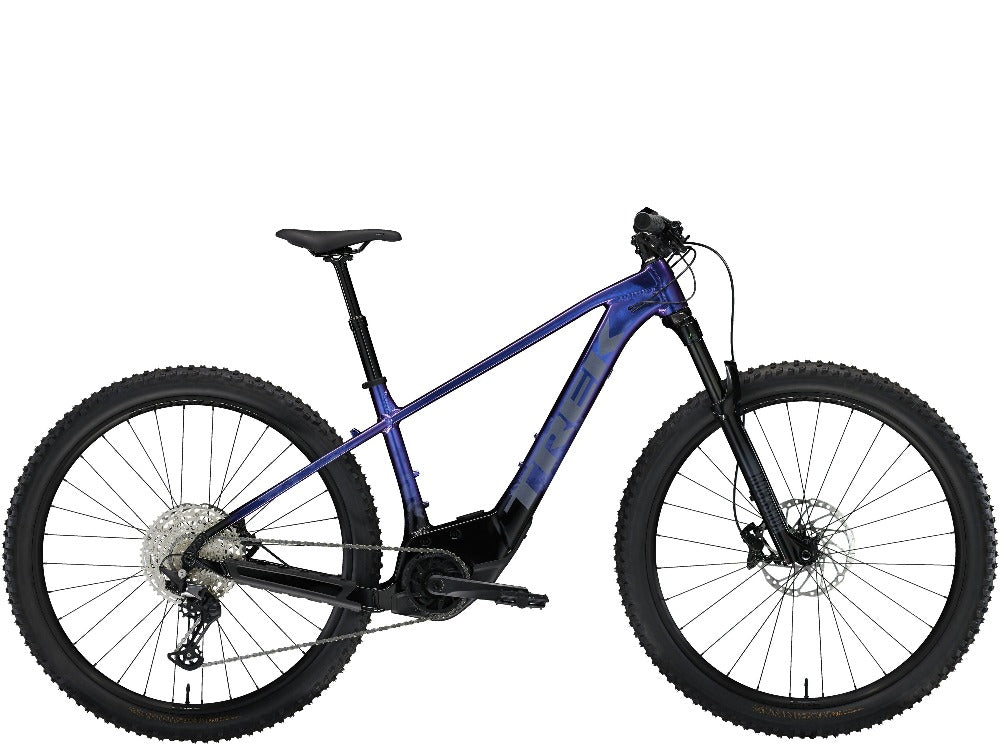

The stylish and reliable Trek Marlin+ 8 Electric Bike 2024 comes with a frame built from Alpha Platinum Aluminium, featuring mountain-bike-inspired geometry plus a 120mm coil-sprung fork, allowing riders to master trails with confidence and ease. For increased power, the Bosch Active Line Plus motor delivers up to 50 Nm of torque, taking you to speeds up to 20 mph/25 kph. Its Purion 200 remote with integrated LCD deputizes a 400 Wh Powertube battery, while a 12-speed Shimano Deore shifting, reinforced with hydraulic disc brakes, and 2.6in tubeless-ready tires provide enhanced grip and puncture protection for a dependable ride.
- Frame Alpha Platinum Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
- *Fork
- Size: XS SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 100 mm travel
- Size: S , M , L , XL RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 120 mm travel
- Hub front Bontrager alloy, sealed bearing, alloy axle, CenterLock, Boost110, 15 mm thru axle
- Skewer rear Bontrager Switch thru-axle, removable lever
- Rim Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
- *Tyre
- Size: XS , S Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5×2.60″
- Size: M , L , XL Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.60″
- Rim strip Bontrager TLR
- Shifter Shimano Deore M6100, 12-speed
- Rear derailleur Shimano Deore M6100, long cage
- Crank FSA CK-220, 165 mm length
- Chainring FSA, 32T, steel
- Cassette Shimano Deore M6100, 10-51, 12-speed
- Chain Shimano Deore M6100, 12-speed
- Pedal VP-536 nylon platform
- Saddle Bontrager Arvada, steel rails, 138 mm width
- *Seatpost
- Size: XS , S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
- Size: M , L , XL TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
- *Handlebar
- Size: XS , S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
- Size: M , L , XL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
- Grips Bontrager XR Trail Comp, nylon lock-on
- *Stem
- Size: XS , S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
- Size: M , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
- Size: XL Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
- Headset Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8″ top, 1.5″ bottom
- Brake Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
- Brake rotor Shimano RT64, CentreLock, 203mm
- Battery Bosch CompactTube 400 Wh
- Charger Bosch standard 2A, 230V, smart system
- Motor Bosch Active Line Plus
- Computer Bosch Purion 200
