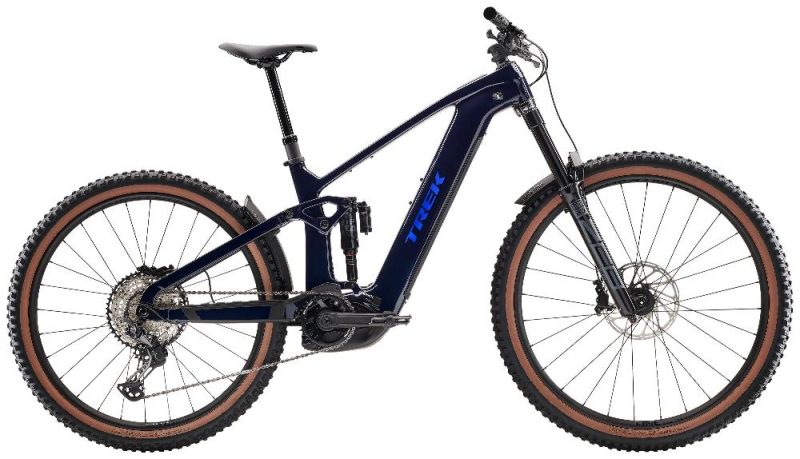

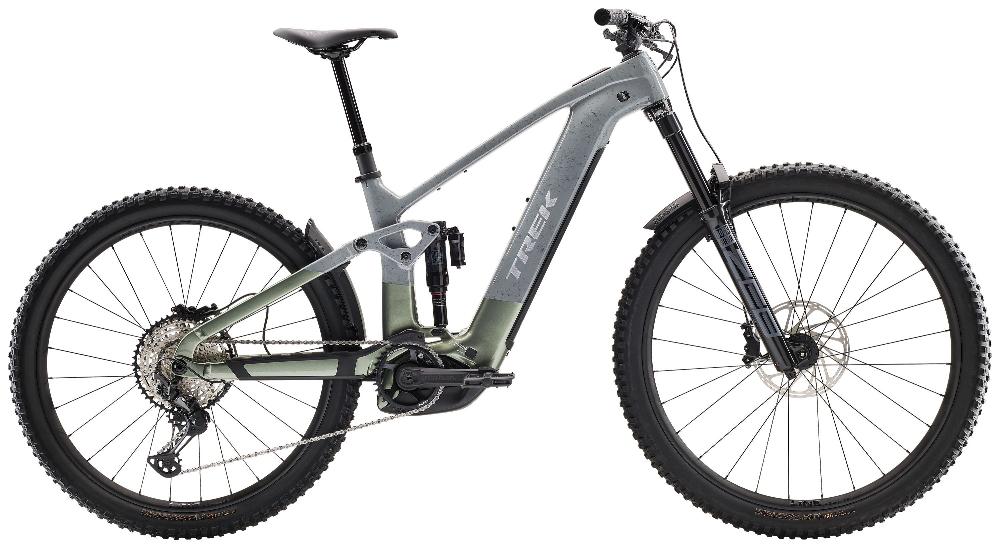

The Rail+ 9.7 is a carbon enduro e-MTB built for your biggest adventures. With 160 mm front and rear travel, the Rail+ is ready to rip through the rough, while a powerful Bosch Performance CX drive system makes long climbs and fast laps a breeze. It packs in adjustable geometry that lets you customise your bike for how and where you ride, a massive battery that keeps you going lap after lap, and a Shimano drivetrain that delivers quick shifts you can count on for the long miles.
- Frame OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel
- Fork RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel
- Shock RockShox Super Deluxe Select+ RT, 205mm x 65mm
- *Wheel front
- Size: S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5″
- Size: M, L, XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29″
- Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5″
- Skewer rear Bontrager Switch thru-axle, removable lever
- *Tyre
- Size: S, M, L, XL Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5×2.50″
- Size: M, L, XL Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.50″
- Tyre part Bontrager TLR sealant, 180 ml/6 oz
- Rim strip Bontrager TLR
- Controller Bosch System Controller BRC3100, smart system
- Motor Bosch Performance Line CX, 20 mph (25 km/h in Europe)
- Shifter Shimano SLX M7100, 12-speed
- Rear derailleur Shimano XT M8100, long cage
- Cassette Shimano SLX M7100, 10-51T, 12-speed
- Chain Shimano SLX M7100, 12-speed
- Pedal VP-536 nylon platform
- Saddle Bontrager Verse P3, chromoly rails
- *Seatpost
- Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length
- Size: M Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
- Size: L, XL Bontrager Line Dropper, 200 mm travel, internal routing, 34.9 mm, 515 mm length
- Handlebar Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
- Grips Bontrager XR Trail Comp, nylon lock-on
- Stem Bontrager Elite, 35 mm, 0-degree, 45 mm length
- Brake SRAM DB 8 4-piston hydraulic disc
- Brake rotor SRAM CentreLine, 6-bolt, round-edge, 200 mm
- Rotor size Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
- Weight M – 23.73 kg / 52.32 lbs (with TLR sealant, no tubes)
- Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
