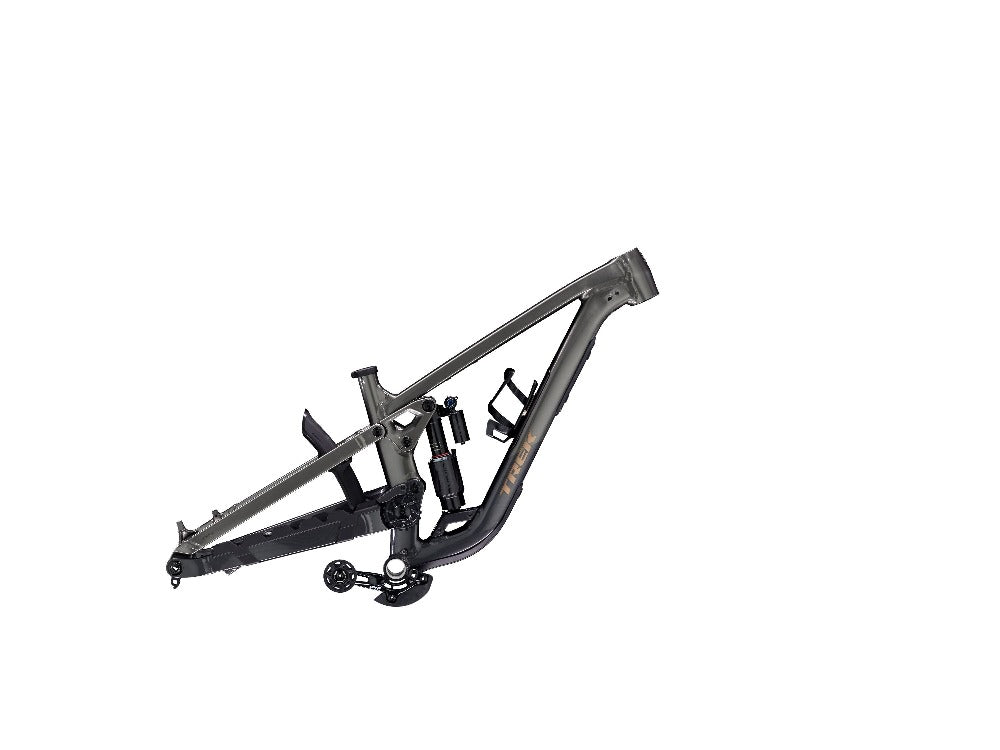

The Slash AL Frameset provides the ideal platform to construct a fast 29er enduro or trail bike. Made from a robust Alpha Aluminium alloy, the frame boasts Trek’s exclusive RE:aktiv shock and a Knock Block 2.0 integrated headset, allowing you to handle even the most technical mountain descents and enduro races.
Colours: Mercury
- Frame Alpha Platinum Aluminium, high main pivot, idler pulley, internal storage, angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148×12 mm thru axle, 170 mm travel
- Shock RockShox Vivid Select+, 230 mm x 65 mm
- Max compatible fork travel 190 mm (606 mm axle-to-crown), S: 190 mm (587 mm axle-to-crown)
- Skewer rear Bontrager Switch thru-axle, removable lever
- Max tyre size Frame: 2.50″, Fork: See manufacturer
- Max. chainring size 1x: 34T round, 32T oval, min 28T
- Headset Integrated cartridge bearing, 1-1/8″ top, 1.5″ bottom, angle adjust cup compatible
- Rotor size Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
- Bag Bontrager BITS Internal Frame Storage Bag
- Weight M – 5.30 kg / 11.69 lbs
- Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
