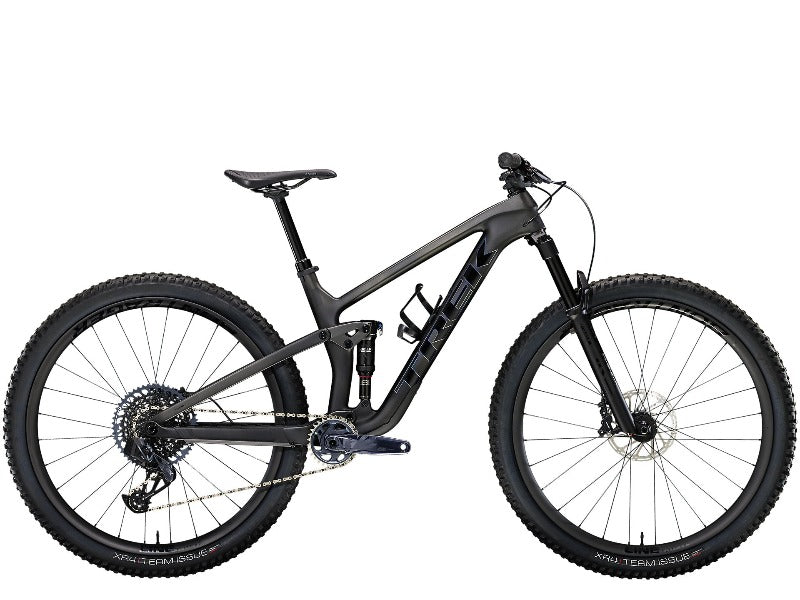

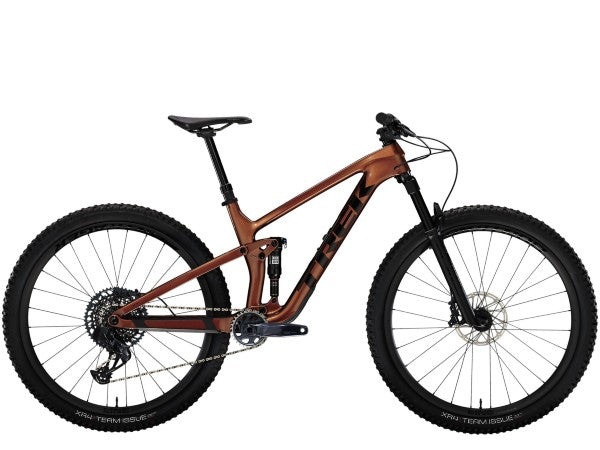

Top Fuel 9.8 is a full suspension carbon mountain bike for riders who don’t settle. Not for parts nor for one style of riding. It combines a high-end parts package with a low-weight carbon frame for one unbelievably fun rig that’s fast on flow and fun to ride on techy singletrack.
- Frame OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
- Fork RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
- Shock RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
- Wheel front NEW Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
- Wheel rear Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost 148, 12 mm thru axle
- Skewer rear Bontrager Switch thru axle, removable lever
- Tyre Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40″
- *Tyre part
- Size: S, M, M/L, L, XL Bontrager TLR sealant, 180 ml/6 oz
- Size: S, M, M/L, L, XL Bontrager TLR valve, 50 mm
- Rim strip Bontrager TLR
- Shifter SRAM GX Eagle, 12-speed
- Rear derailleur SRAM GX Eagle
- *Crank
- Size: S, M, M/L, L SRAM GX Eagle, DUB MTB Wide, 30T, Boost (55 mm chainline), 170 length
- Size: XL SRAM GX Eagle, DUB MTB Wide, 30T, Boost (55 mm chainline), 175 length
- Bottom bracket SRAM DUB MTB Wide, 73 m, BSA threaded
- Cassette SRAM Eagle XG-1275, 10-52, 12-speed
- Chain SRAM GX Eagle, 12-speed
- Saddle Bontrager Arvada, austenite rails, 138 mm width
- *Seatpost
- Size: S Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
- Size: M, M/L Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
- Size: L Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
- Size: XL Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
- *Handlebar
- Size: S Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
- Size: M, M/L, L, XL Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
- Grips Bontrager XR Trail Elite, nylon lock-on
- Stem Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
- Headset Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8″ top, 1.5″ bottom
- Brake SRAM G2 RS hydraulic disc
- *Brake rotor
- Size: S, M, M/L, L, XL SRAM CenterLine, 6-bolt, round-edge, 160 mm
- Size: S, M, M/L, L, XL SRAM CenterLine, 6-bolt, round edge, 180 mm
- Weight M – 27.45 lbs / 12.45 kg (with TLR sealant, no tubes)
- Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
